Duplex Wire Rope Grips Zinc Plated
Description

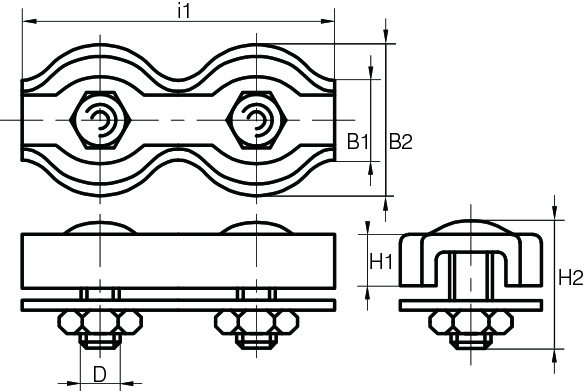

Product Code |
Size |
b1 |
b2 |
d |
h1 |
h2 |
i1 |
Weight (kgs/100) |
|---|---|---|---|---|---|---|---|---|
GDWRG02 |
2mm |
4mm |
12mm |
4mm |
5mm |
14mm |
30mm |
0.97 |
GDWRG03 |
3mm |
6mm |
14mm |
4mm |
7mm |
14mm |
35mm |
1.41 |
GDWRG04 |
4mm |
8mm |
18mm |
5mm |
7mm |
18mm |
40mm |
2.45 |
GDWRG05 |
5mm |
10mm |
20mm |
5mm |
8mm |
18mm |
50mm |
2.91 |
GDWRG06 |
6mm |
12mm |
24mm |
6mm |
9mm |
23mm |
60mm |
5 |
GDWRG08 |
8mm |
17mm |
30mm |
8mm |
13mm |
25mm |
75mm |
10.63 |
GDWRG10 |
10mm |
21mm |
35mm |
10mm |
16mm |
32mm |
95mm |
17.13 |
