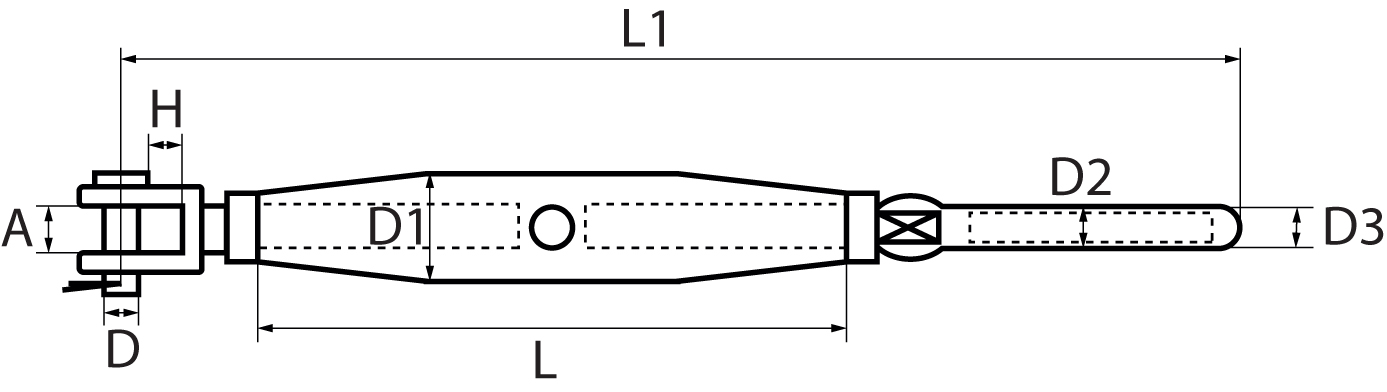

Rigging Screws Jaw & Swaged Terminal
Description
Product Code |
Size |
L |
L1 |
D2 |
D3 |
Wire Diameter |
A |
D |
H |
Breaking Load (kgs) |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|---|---|---|
SSTR05 |
5mm |
80mm |
155mm |
5.5mm |
2.7mm |
2.5mm |
6.5mm |
5mm |
10mm |
1000 |
0.046 |
SSTR06 |
6mm |
90mm |
175mm |
6.5mm |
3.2mm |
3mm |
7.5mm |
6mm |
10mm |
1500 |
0.079 |
SSTR08 |
8mm |
105mm |
205mm |
7.5mm |
4.3mm |
4mm |
11mm |
8mm |
11mm |
3000 |
0.14 |
SSTR10 |
10mm |
125mm |
230mm |
9mm |
5.3mm |
5mm |
14mm |
9mm |
14mm |
4300 |
0.25 |
SSTR12 |
12mm |
150mm |
285mm |
12.5mm |
6.3mm |
6mm |
21mm |
12mm |
21mm |
6500 |
0.467 |
SSTR14 |
14mm |
165mm |
315mm |
14mm |
7.3mm |
7mm |
22mm |
12mm |
22mm |
8500 |
0.575 |
SSTR16 |
16mm |
190mm |
375mm |
16mm |
8.3mm |
8mm |
26mm |
16mm |
26mm |
9500 |
0.867 |
