Home >> Products >> Lifting & Hoisting Hardware >> Shackles >> Commercial Bow Shackles Galvanised Screwed Collar Pin
Commercial Bow Shackles Galvanised Screwed Collar Pin

Commercial Bow Shackles Galvanised Screwed Collar Pin

Categories: , Tag:

Description

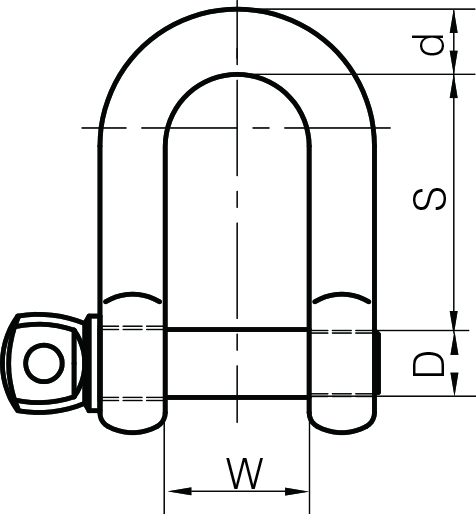

Product Code Body d (Lowercase) D W S Weight (kgs/100)
COMB05 3/16″ 5 mm 5 mm 10 mm 20 mm 1.80
COMB06 1/4″   6 mm 6 mm 12 mm 24 mm 3
COMB08 5/16    8 mm  8mm 16 mm 32mm 6.5
COMB10 3/8″    10mm 10mm 20mm 40mm 11.5
COMB11 7/16″    11mm 11mm 22mm 44mm 16.5
COMB12 1/2″    12mm 12mm 24mm 48mm 22.7
COMB16 5/8″  16mm 16mm 32mm 64mm 54.3
COMB20 3/4″ 20mm 20mm 40mm 80mm 100
COMB22 7/8″ 22 mm 22 mm 44 mm 88 mm 141
COMB25 1″ 25mm 25mm 48mm 96mm 228

Related products

    To enquire further about a product please fill in the details, we look forward to being of service.
