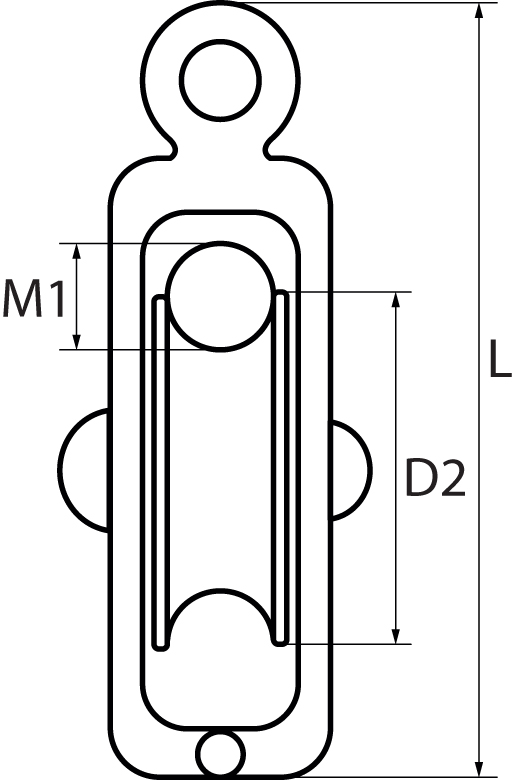

Cast Sheave with Fixed Round Eye Single Sheave
Description
Product Code |
D2 |
M1 |
D1 |
L |
B Load |
|---|---|---|---|---|---|
AWNS1.5 |
40mm |
8mm |
10mm |
76mm |
1100kgs |
AWNS1.25 |
30mm |
8mm |
8mm |
67mm |
900kgs |
AWNS1 |
25mm |
6mm |
8mm |
53mm |
800kgs |
AWNS2.5 |
64mm |
12mm |
13mm |
115mm |
1400kgs |
AWNS2 |
50mm |
11mm |
12mm |
100mm |
1200kgs |
AWNS3 |
75mm |
16mm |
15mm |
135mm |
1600kgs |
