Reeving Thimbles BS 464 Table 2 – Galvanised
Description

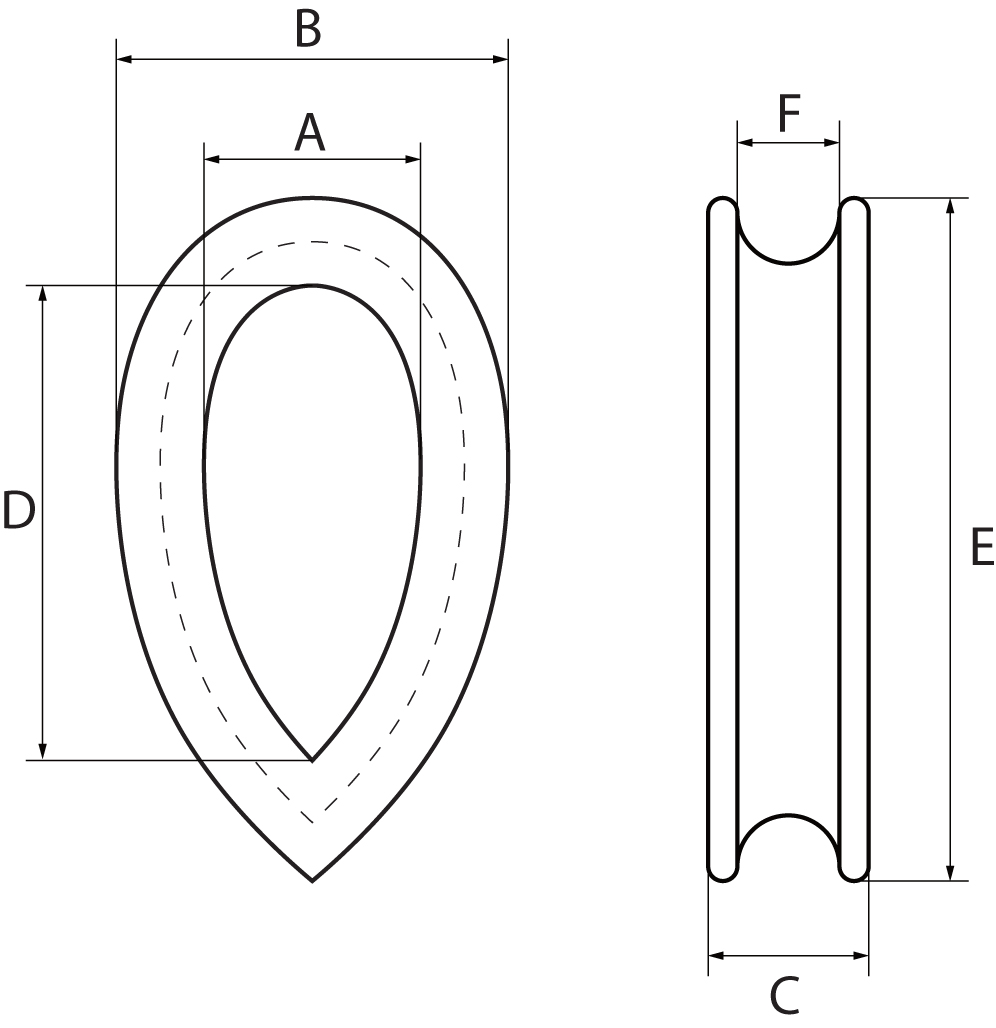

Product Code |
Rope Diameter |
A |
B |
C |
D |
E |
F |
Weight (kgs/100) |
|---|---|---|---|---|---|---|---|---|
RT08 |
5/16″ – 8mm |
28mm |
50mm |
11mm |
60mm |
80mm |
10mm |
0.12 |
RT10 |
3/8″ – 10mm |
32mm |
57mm |
14mm |
76mm |
100mm |
12mm |
0.14 |
RT12 |
1/2″ – 12mm |
38mm |
73mm |
19mm |
102mm |
145mm |
14mm |
0.37 |
RT16 |
5/8″ – 16mm |
51mm |
86mm |
29mm |
130mm |
170mm |
19mm |
0.68 |
RT20 |
3/4″ – 19mm |
64mm |
108mm |
32mm |
159mm |
210mm |
22mm |
0.91 |
RT24 |
1″ – 24mm |
76mm |
125mm |
35mm |
187mm |
245mm |
27mm |
1.59 |
RT28 |
1 1/8″ – 28mm |
89mm |
146mm |
41mm |
213mm |
285mm |
33mm |
2.49 |
