Heart Shaped Thimbles BS464/1 1958-Galvanised
Description

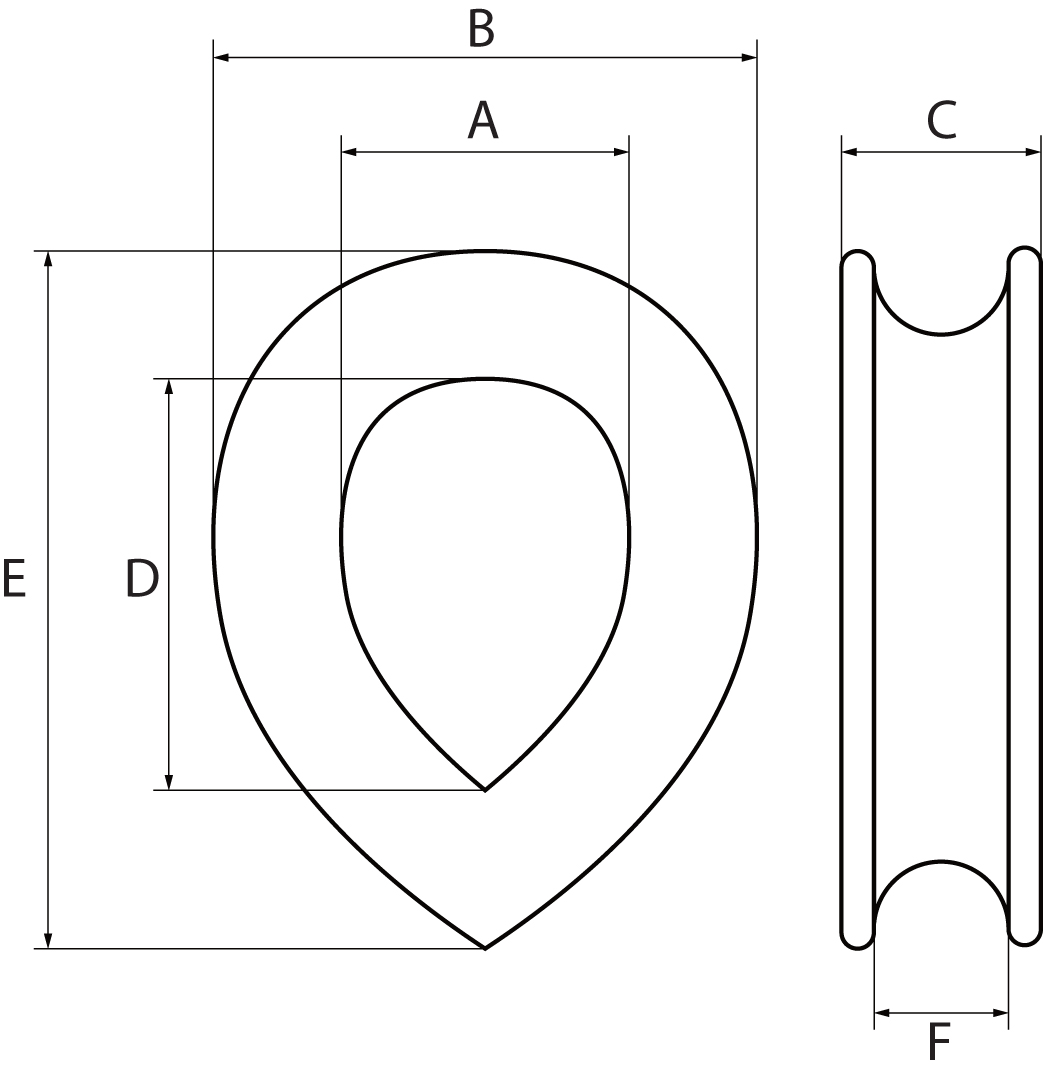

Product Code |
Nominal Rope Diameter |
A |
B |
C |
D |
E |
F |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|
BST06 |
1/4″ – 6mm |
16mm |
37mm |
11mm |
25mm |
48mm |
6mm |
0.05 |
BST08 |
5/16″ – 8mm |
22mm |
38mm |
13mm |
33mm |
54mm |
8mm |
0.06 |
BST10 |
3/8″ – 10mm |
25mm |
48mm |
14mm |
38mm |
64mm |
10mm |
0.08 |
BST12 |
1/2″ – 12mm |
32mm |
59mm |
21mm |
44mm |
79mm |
14mm |
0.19 |
BST16 |
5/8″ – 16mm |
41mm |
75mm |
22mm |
59mm |
98mm |
16mm |
0.34 |
BST20 |
3/4″ – 19mm |
51mm |
92mm |
29mm |
73mm |
124mm |
21mm |
0.62 |
BST22 |
7/8″ – 22mm |
57mm |
102mm |
32mm |
83mm |
134mm |
22mm |
0.76 |
BST26 |
1″ – 25mm |
70mm |
119mm |
35mm |
108mm |
162mm |
27mm |
1.25 |
BST28 |
1 1/8″ – 28mm |
76mm |
134mm |
38mm |
111mm |
178mm |
29mm |
1.51 |
BST32 |
1 1/4″ – 31mm |
95mm |
152mm |
41mm |
134mm |
197mm |
33mm |
2.04 |
BST35 |
1 3/8″ – 35mm |
105mm |
175mm |
48mm |
152mm |
229mm |
38mm |
3.18 |
BST38 |
1 1/2″ – 38mm |
114mm |
197mm |
54mm |
165mm |
254mm |
41mm |
4.88 |
