Galvanised Heavy Duty Thimbles to US Fed. Spec. FF-T-276-B Type 3
Description

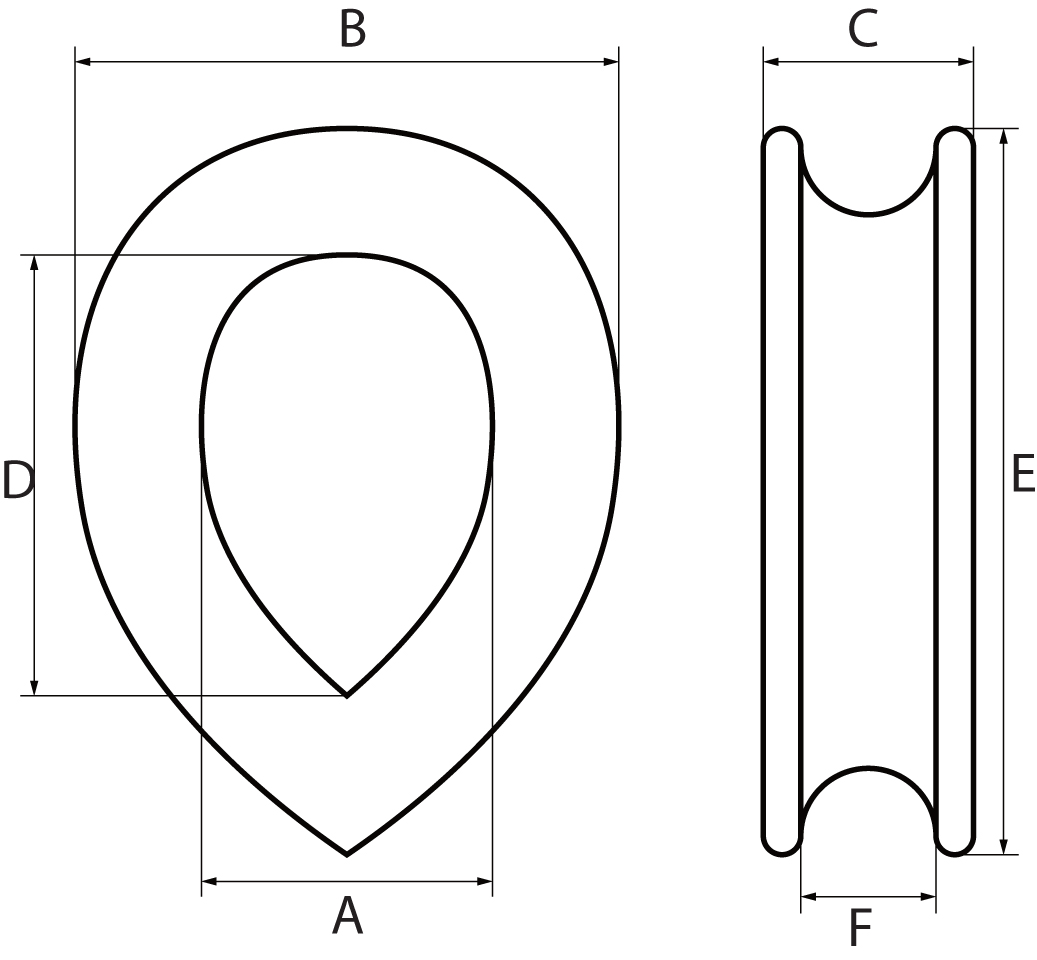

Product Code |
Nominal Rope Diameter |
A |
B |
D |
E |
F |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
UST06 |
1/4″ – 6mm |
22mm |
38mm |
41mm |
57mm |
6mm |
0.04 |
UST08 |
5/16″ – 8mm |
26mm |
45mm |
48mm |
64mm |
8mm |
0.06 |
UST10 |
3/8″ – 10mm |
28mm |
55mm |
55mm |
74mm |
10mm |
0.11 |
UST11 |
7/16″ – 11mm |
32mm |
62mm |
62mm |
82mm |
11mm |
0.16 |
UST14 |
9/16″ – 14mm |
38mm |
72mm |
71mm |
92mm |
15mm |
0.23 |
UST16 |
5/8″ – 16mm |
44mm |
80mm |
82mm |
108mm |
16mm |
0.33 |
UST19 |
3/4″ – 19mm |
52mm |
96mm |
95mm |
126mm |
21mm |
0.66 |
UST22 |
7/8″ – 22mm |
58mm |
108mm |
108mm |
138mm |
22mm |
0.83 |
UST25 |
1″ – 25mm |
64mm |
125mm |
114mm |
155mm |
27mm |
1.35 |
UST31 |
1 1/4″ – 31mm |
74mm |
148mm |
129mm |
178mm |
33mm |
1.84 |
UST38 |
1 1/2″ – 38mm |
89mm |
180mm |
164mm |
228mm |
40mm |
5.4 |
UST112 |
1/2″ – 12mm |
38mm |
72mm |
71mm |
92mm |
13mm |
0.23 |
