Stainless Steel Long Shank Eyebolts Fully Threaded
Description

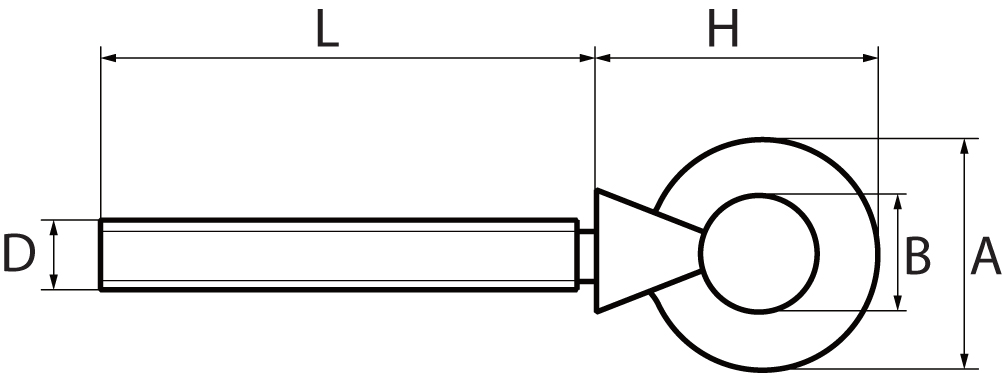

Product Code |
Size D |
A |
B |
H |
L |
Weight (kgs/each) |
|---|---|---|---|---|---|---|
SSEBL0650 |
6mm |
26mm |
16mm |
31mm |
50mm |
0.04 |
SSEBL0850 |
8mm |
32mm |
20mm |
39mm |
50mm |
0.090 |
SSEBL1050 |
10mm |
41mm |
25mm |
48mm |
50mm |
0.130 |
SSEBL1250 |
12mm |
50mm |
30mm |
61mm |
50mm |
0.124 |
SSEBL1650 |
16mm |
60mm |
35mm |
72mm |
50mm |
0.300 |
SSEBL2080 |
20mm |
72mm |
40mm |
86mm |
80mm |
0.450 |
SSEBL2480 |
24mm |
90mm |
50mm |
111mm |
80mm |
0.850 |
