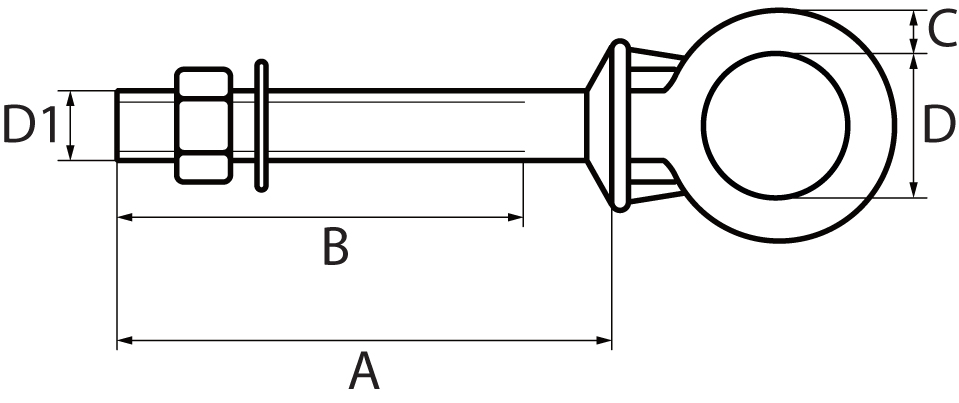

Stainless Steel Long Shank Eyebolt with Nut & Washer
Description
Product Code |
Size D |
A |
B |
C |
D |
Weight (kgs/each) |
|---|---|---|---|---|---|---|
SSEBL06A |
6mm |
40mm |
34mm |
5mm |
12mm |
0.040 |
SSEBL06B |
6mm |
60mm |
54mm |
5mm |
12mm |
0.040 |
SSEBL06 |
6mm |
80mm |
70mm |
5mm |
12mm |
0.050 |
SSEBL08A |
8mm |
80mm |
70mm |
6mm |
14mm |
0.09 |
SSEBL08 |
8mm |
100mm |
90mm |
6mm |
14mm |
0.098 |
SSEBL10A |
10mm |
200mm |
190mm |
8mm |
25mm |
0.180 |
SSEBL10 |
10mm |
100mm |
88mm |
8mm |
16mm |
0.145 |
SSEBL12A |
12mm |
200mm |
185mm |
10mm |
30mm |
0.190 |
SSEBL12 |
12mm |
120mm |
105mm |
10mm |
18mm |
0.160 |
SSEBL16 |
16mm |
150mm |
135mm |
12mm |
35mm |
0.240 |
SSEBL20 |
20mm |
150mm |
145mm |
15mm |
39mm |
0.361 |
SSEBL24 |
24mm |
150mm |
145mm |
20mm |
50mm |
0.486 |
