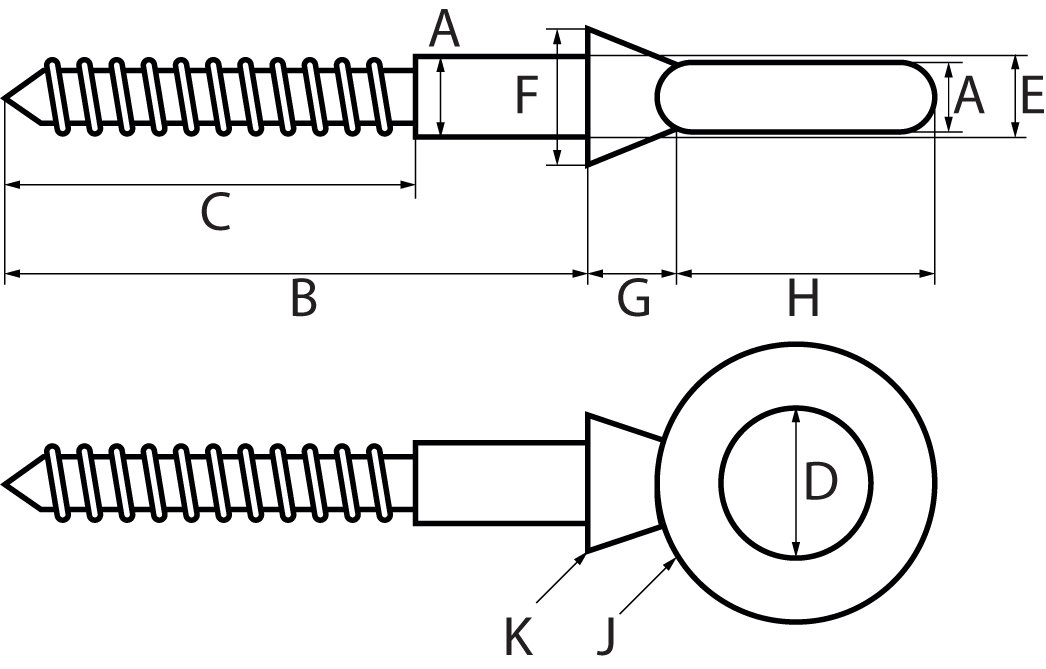

Stainless Steel Eyebolt with Lag Thread Woodscrew Thread
Description
Product Code |
A |
B |
C |
D |
F |
G |
H |
|---|---|---|---|---|---|---|---|
SSEBW0550 |
5mm |
50mm |
30mm |
11mm |
10mm |
5mm |
21mm |
SSEBW06100 |
6mm |
100mm |
60mm |
14mm |
12mm |
6mm |
26mm |
SSEBW0660 |
6mm |
60mm |
36mm |
14mm |
12mm |
6mm |
26mm |
SSEBW08100 |
8mm |
100mm |
60mm |
18mm |
16mm |
8mm |
34mm |
SSEBW0860 |
8mm |
60mm |
36mm |
18mm |
16mm |
8mm |
34mm |
SSEBW1080 |
10mm |
80mm |
48mm |
22mm |
20mm |
10mm |
42mm |
SSEBW10120 |
10mm |
120mm |
72mm |
22mm |
20mm |
10mm |
42mm |
