Home >> Products >> Anchoring & Fixed Points >> Stainless Steel Eye Plates >> Four Hole Eye Plates Fitted with Ring

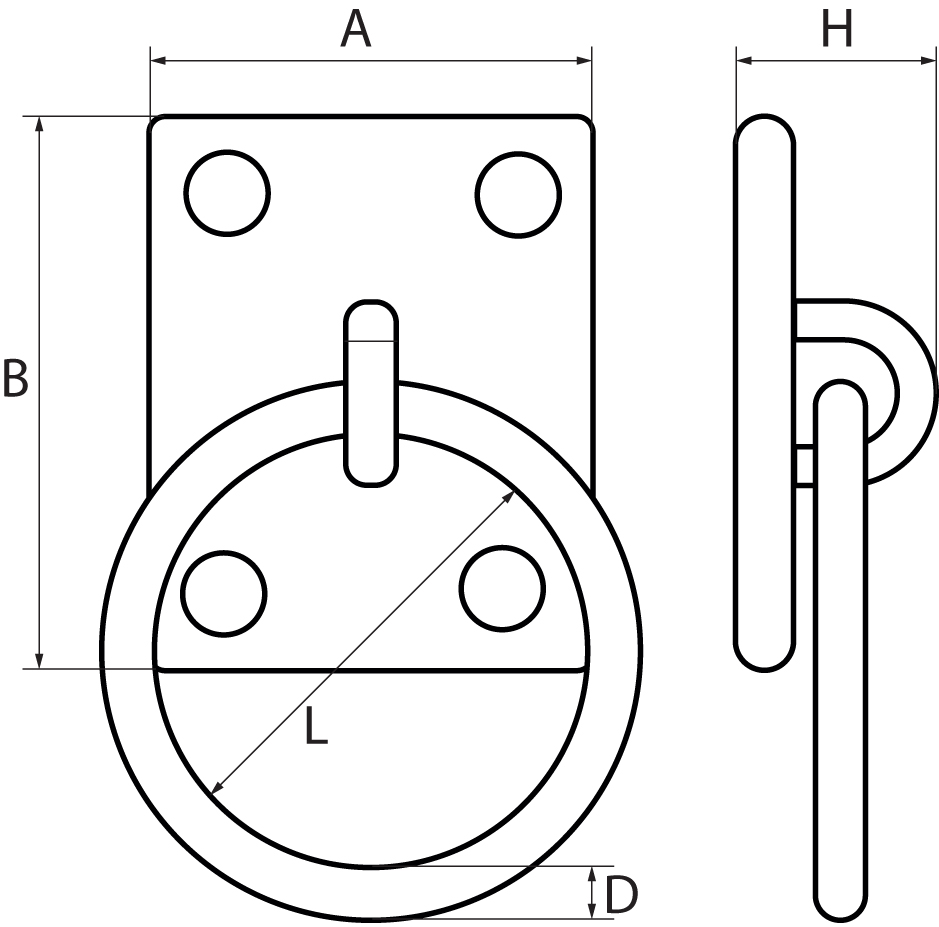

Four Hole Eye Plates Fitted with Ring

Four Hole Eye Plates Fitted with Ring

Categories: , Tag:

Description

Product Code
D (uppercase)
L
A
B
H
d (lowercase)
Weight (kgs/each)
SSEPR16
5mm
30
30
35
20
4.2
0.040
SSEPR20
6mm
40
35
40
24
4.2
0.071
SSEPR23
8mm
50
40
50
33
5.2
0.135
