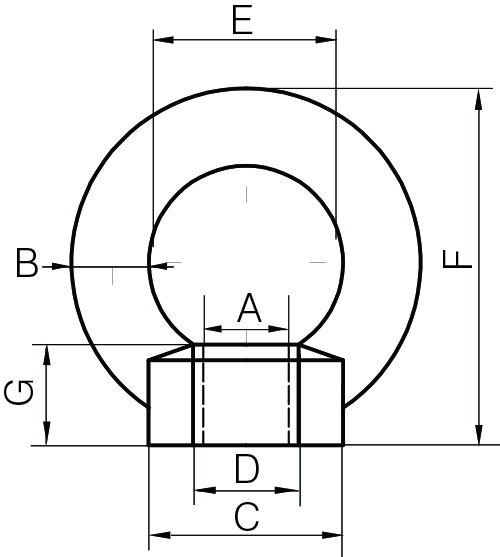

BSW Thread Drop Forged Eyenuts
Description
Product Code |
A (BSW) |
A (mm) |
B |
C |
D |
E |
F |
G |
|---|---|---|---|---|---|---|---|---|
IEN06 |
1/4″ |
M6 |
9mm |
22mm |
14mm |
25mm |
49mm |
14mm |
IEN10 |
3/8″ |
M10 |
9mm |
22mm |
14mm |
25mm |
49mm |
14mm |
IEN12 |
1/2″ |
M12 |
13mm |
29mm |
19mm |
44mm |
78mm |
22mm |
IEN16 |
5/8″ |
M16 |
13mm |
29mm |
19mm |
44mm |
78mm |
22mm |
IEN20 |
3/4″ |
M20 |
16mm |
39mm |
31mm |
49mm |
84mm |
26mm |
IEN22 |
7/8″ |
M22 |
16mm |
39mm |
31mm |
49mm |
84mm |
26mm |
IEN24 |
1″ |
M24 |
21mm |
44mm |
34mm |
52mm |
111mm |
44mm |
