Long Shank Collared Eyebolts to BS 529 Part 1 1944 – Tested & Certified – Metric Thread
Description

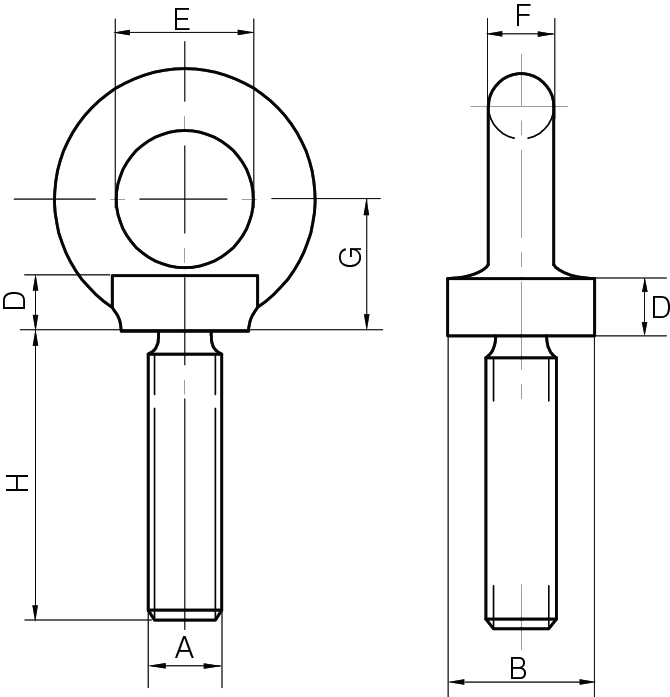

Product Code |
SWL (tonnes) |
A (inches) |
A (mm) |
B |
D |
E |
F |
G |
H |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|---|---|
MCEL10 |
0.25 |
3/8″ |
M10mm |
22mm |
8mm |
14mm |
10mm |
20mm |
178mm |
0.18 |
MCEL12 |
0.5 |
1/2″ |
M12mm |
28mm |
10mm |
19mm |
11mm |
25mm |
178mm |
0.2 |
MCEL16 |
0.9 |
5/8″ |
M16mm |
36mm |
12mm |
24mm |
14mm |
32mm |
178mm |
0.5 |
MCEL20 |
1.4 |
3/4″ |
M20mm |
43mm |
14mm |
28mm |
17mm |
38mm |
178mm |
0.8 |
MCEL22 |
2 |
7/8″ |
M22mm |
50mm |
17mm |
33mm |
20mm |
44mm |
178mm |
1 |
MCEL24 |
2.75 |
1″ |
M24mm |
57mm |
19mm |
38mm |
22mm |
51mm |
178mm |
1.5 |
MCEL30 |
4.5 |
1 1/4″ |
M30mm |
71mm |
24mm |
48mm |
28mm |
64mm |
178mm |
2.9 |
