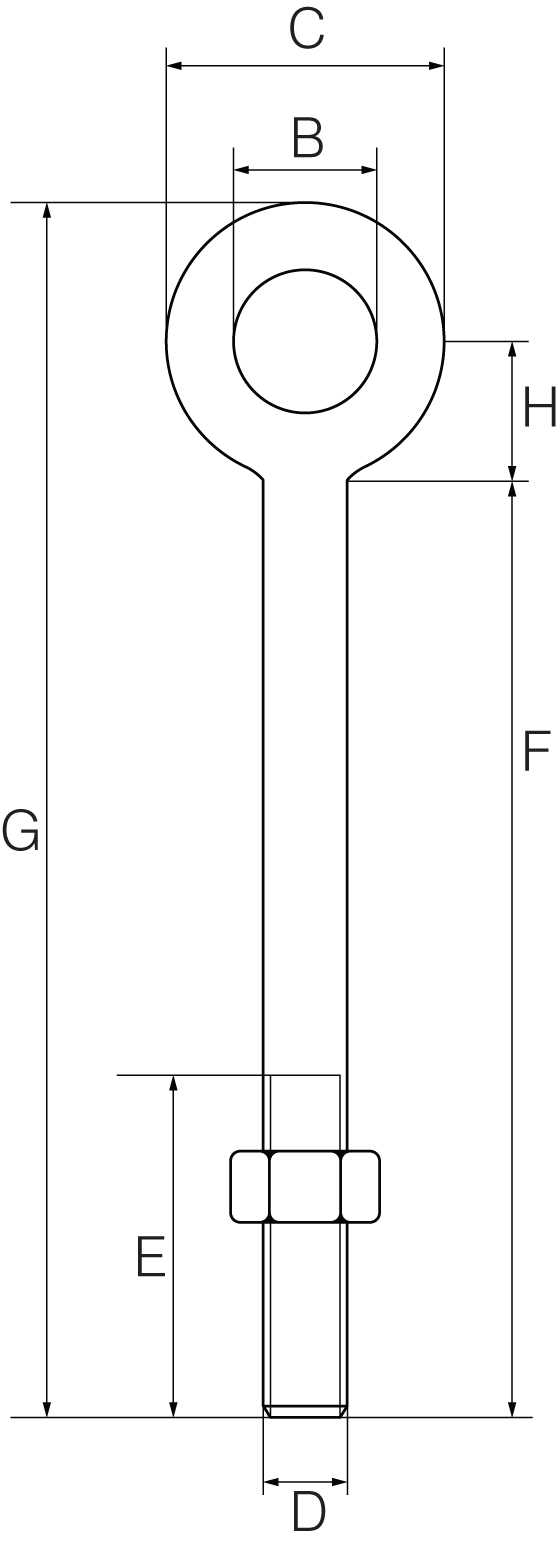

Galvanised Regular Nut Eyebolts with Nut
Description
Product Code |
A |
B |
C |
D |
E |
F |
G |
H |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|---|
RNE063 |
1/4″ |
12mm |
25mm |
6mm |
38mm |
51mm |
77mm |
14mm |
0.03 |
RNE064 |
1/4″ |
12mm |
25mm |
6mm |
63mm |
102mm |
129mm |
14mm |
0.06 |
RNE084 |
5/16″ |
15mm |
32mm |
8mm |
63mm |
108mm |
141mm |
17mm |
0.11 |
RNE104 |
3/8″ |
19mm |
38mm |
9mm |
63mm |
114mm |
155mm |
22mm |
0.17 |
RNE108 |
3/8″ |
19mm |
38mm |
9mm |
63mm |
200mm |
246mm |
22mm |
0.22 |
RNE126 |
1/2″ |
25mm |
51mm |
12mm |
76mm |
152mm |
206mm |
28mm |
0.28 |
RNE166 |
5/8″ |
32mm |
63mm |
16mm |
76mm |
152mm |
221mm |
36mm |
0.55 |
RNE206 |
3/4″ |
38mm |
76mm |
19mm |
76mm |
152mm |
233mm |
43mm |
0.82 |
RNE226 |
7/8″ |
44mm |
89mm |
22mm |
63mm |
127mm |
222mm |
51mm |
1.25 |
RNE256 |
1″ |
51mm |
102mm |
25mm |
76mm |
152mm |
262mm |
58mm |
1.93 |
RNE258 |
1″ |
51mm |
102mm |
25mm |
102mm |
200mm |
309mm |
58mm |
2.05 |
RNE1210 |
1/2″ |
25mm |
51mm |
12mm |
76mm |
254mm |
308mm |
28mm |
0.4 |
RNE1610 |
5/8″ |
32mm |
63mm |
16mm |
76mm |
254mm |
322mm |
36mm |
0.72 |
RNE2010 |
3/4″ |
38mm |
76mm |
19mm |
76mm |
254mm |
335mm |
43mm |
1.08 |
RNE2212 |
7/8″ |
44mm |
89mm |
22mm |
102mm |
305mm |
400mm |
51mm |
1.81 |
