Eyebolts with Links to BS 4278 Part 2 1984 – Tested & Certified
Description

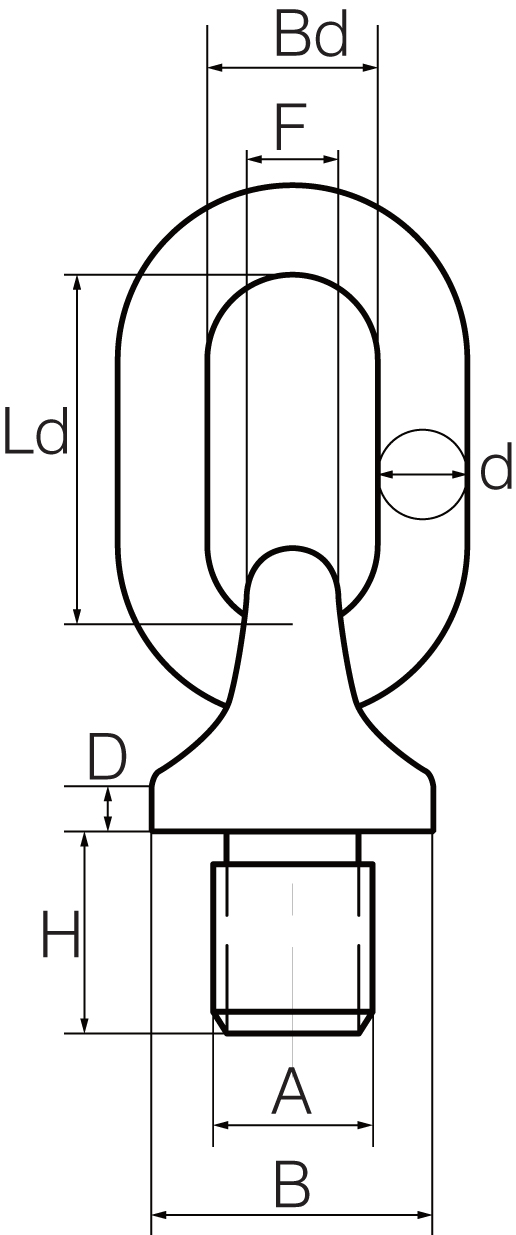

Product Code |
SWL (tonnes) |
A |
B |
D |
F |
H |
d (lowercase) |
Bd |
Ld |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|---|---|
LEB12 |
0.2 |
M12mm |
39mm |
9mm |
12mm |
27mm |
13mm |
24mm |
53mm |
0.4 |
LEB16 |
0.4 |
M16mm |
39mm |
9mm |
12mm |
27mm |
13mm |
24mm |
53mm |
0.4 |
LEB20 |
1 |
M20mm |
39mm |
9mm |
12mm |
27mm |
13mm |
24mm |
53mm |
0.5 |
LEB24 |
1.6 |
M24mm |
47mm |
11mm |
14mm |
32mm |
15mm |
29mm |
63mm |
0.8 |
LEB30 |
2.5 |
M30mm |
60mm |
14mm |
18mm |
41mm |
19mm |
37mm |
80mm |
1.5 |
LEB36 |
4 |
M36mm |
75mm |
17mm |
23mm |
52mm |
24mm |
46mm |
102mm |
3 |
LEB45 |
5 |
M45mm |
94mm |
22mm |
29mm |
65mm |
30mm |
58mm |
126mm |
5.5 |
LEB48 |
6.3 |
M48mm |
94mm |
22mm |
29mm |
65mm |
30mm |
58mm |
126mm |
5.5 |
