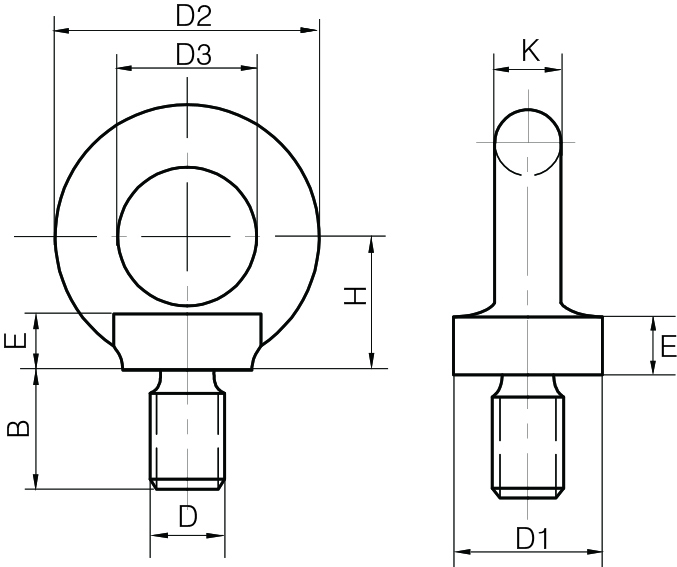

Eyebolts to Din 580
Description
Product Code |
SWL (tonnes) |
D |
D1 |
D2 |
D3 |
B |
E |
H |
K |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|---|---|
DINEB06 |
0.07 |
M6 |
20mm |
36mm |
20mm |
9mm |
6mm |
18mm |
6mm |
0.06 |
DINEB08 |
0.14 |
M8 |
20mm |
36mm |
20mm |
15mm |
6mm |
18mm |
8mm |
0.08 |
DINEB10 |
0.23 |
M10 |
25mm |
45mm |
25mm |
18mm |
8mm |
22mm |
10mm |
0.11 |
DINEB12 |
0.34 |
M12 |
30mm |
54mm |
30mm |
22mm |
10mm |
26mm |
12mm |
0.18 |
DINEB16 |
0.7 |
M16 |
35mm |
63mm |
35mm |
28mm |
12mm |
30mm |
14mm |
0.28 |
DINEB20 |
1.2 |
M20 |
40mm |
72mm |
40mm |
30mm |
12mm |
35mm |
16mm |
0.45 |
DINEB24 |
1.8 |
M24 |
50mm |
90mm |
50mm |
38mm |
16mm |
45mm |
20mm |
0.87 |
DINEB30 |
3.6 |
M30 |
60mm |
108mm |
60mm |
45mm |
25mm |
55mm |
24mm |
1.66 |
DINEB36 |
5.1 |
M36 |
70mm |
126mm |
70mm |
54mm |
26mm |
64mm |
28mm |
2.65 |
DINEB42 |
7 |
M42 |
80mm |
144mm |
80mm |
63mm |
30mm |
73mm |
32mm |
4.03 |
DINEB48 |
8.6 |
M48 |
90mm |
166mm |
90mm |
68mm |
35mm |
84mm |
38mm |
6.38 |
DINEB56 |
11.5 |
M56 |
100mm |
184mm |
100mm |
78mm |
38mm |
93mm |
72mm |
8.8 |
