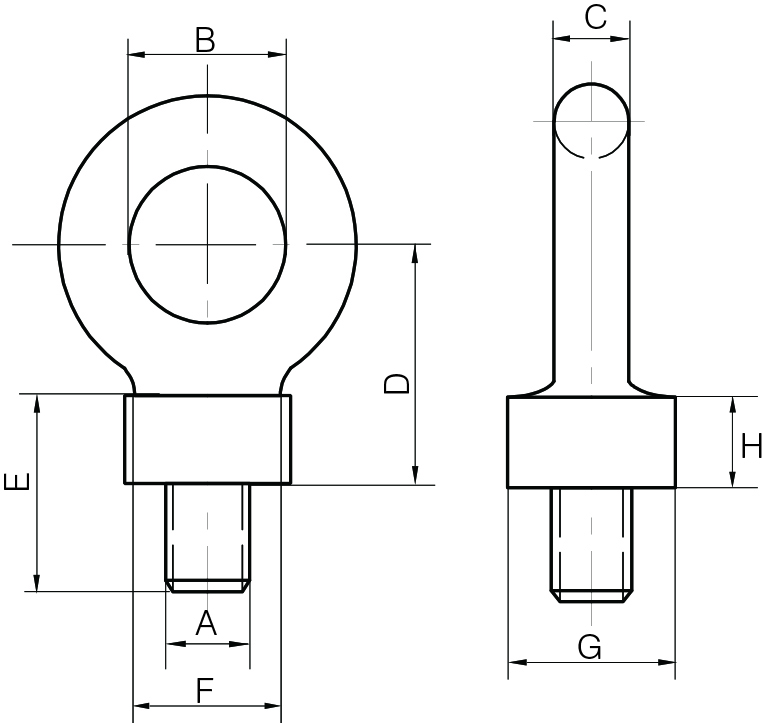

Drop Forged Dynamo Eyebolts Commercial Pattern – Metric Thread
Description
Product Code |
SWL (tonnes) |
A (inches) |
A (mm) |
B |
D |
E |
F |
G |
Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|---|
MDE06 |
0.1 |
1/4″ |
M6 |
22mm |
10mm |
26mm |
19mm |
19mm |
0.08 |
MDE08 |
0.15 |
5/16″ |
M8 |
22mm |
10mm |
26mm |
19mm |
19mm |
0.08 |
MDE10 |
0.25 |
3/8″ |
M10 |
22mm |
10mm |
26mm |
19mm |
19mm |
0.08 |
MDE12 |
0.5 |
1/2″ |
M12 |
26mm |
11mm |
35mm |
25mm |
25mm |
0.14 |
MDE16 |
0.8 |
5/8″ |
M16 |
32mm |
13mm |
41mm |
28mm |
28mm |
0.24 |
MDE20 |
1.2 |
3/4″ |
M20 |
40mm |
17mm |
54mm |
32mm |
36mm |
0.4 |
MDE22 |
1.6 |
7/8″ |
M22 |
44mm |
17mm |
60mm |
43mm |
35mm |
0.62 |
MDE24 |
2.2 |
1″ |
M24 |
52mm |
21mm |
62mm |
46mm |
34mm |
0.8 |
