Collared Eyebolts to BS 4278 Table 4 1984 – Tested and Certified
Description

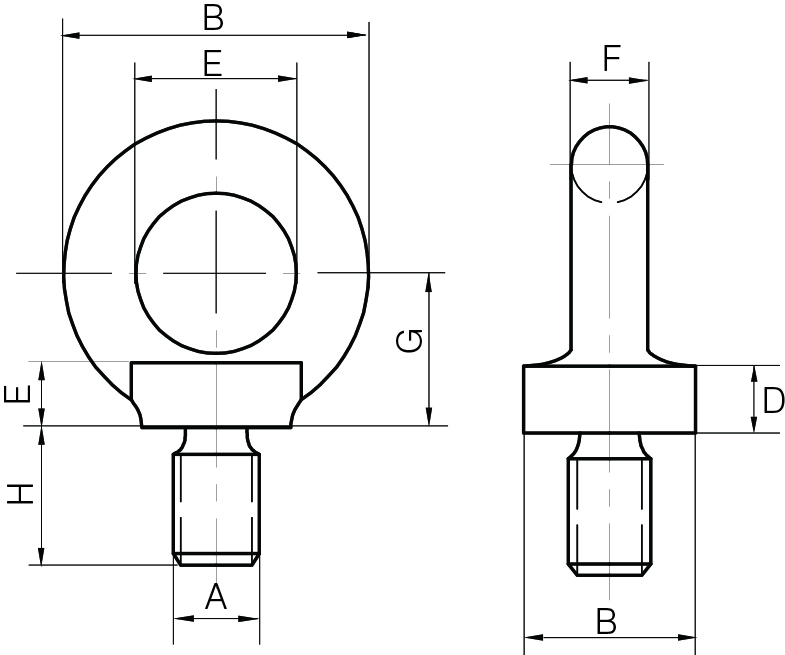

Product Code |
SWL (tonnes) |
A |
B |
D |
E |
F |
G |
H |
Weight (kgs/100) |
|---|---|---|---|---|---|---|---|---|---|
ICE06 |
0.1 |
1/4″ |
22mm |
7mm |
15mm |
9mm |
20mm |
18mm |
0.07 |
ICE08 |
0.15 |
5/16″ |
22mm |
7mm |
15mm |
9mm |
20mm |
18mm |
0.07 |
ICE10 |
0.25 |
3/8″ |
22mm |
7mm |
15mm |
9mm |
20mm |
18mm |
0.07 |
ICE12 |
0.5 |
1/2″ |
22mm |
7mm |
15mm |
9mm |
20mm |
18mm |
0.08 |
ICE16 |
0.9 |
5/8″ |
29mm |
10mm |
20mm |
12mm |
26mm |
23mm |
0.17 |
ICE20 |
1.4 |
3/4″ |
45mm |
14mm |
30mm |
17mm |
40mm |
35mm |
0.54 |
ICE22 |
2 |
7/8″ |
52mm |
17mm |
35mm |
21mm |
46mm |
40mm |
0.88 |
ICE25 |
2.75 |
1″ |
52mm |
17mm |
35mm |
21mm |
46mm |
40mm |
0.9 |
ICE28 |
3.5 |
1 1/8″ |
65mm |
22mm |
44mm |
26mm |
58mm |
51mm |
1.6 |
ICE32 |
4.5 |
1 1/4″ |
72mm |
24mm |
48mm |
29mm |
64mm |
56mm |
1.75 |
ICE38 |
6.5 |
1 1/2″ |
86mm |
29mm |
57mm |
33mm |
76mm |
67mm |
3.6 |
