Wire Ropes - Rope Grips

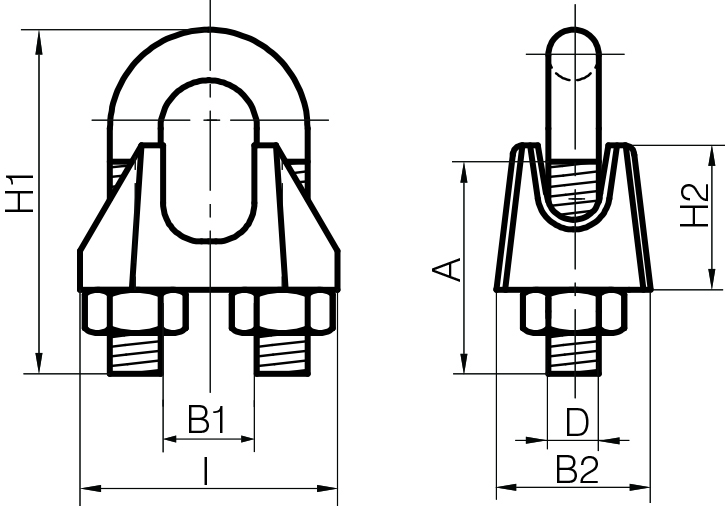

 Commercial Wire Rope Grips DIN741-Galvanised

Click to enlarge

Product Code Rope Diameter A B1 B2 D H1 H2 I Weight (kgs/100)
COMG03  3 12mm 4mm 10mm M4mm 20mm 10mm 21mm 0.8
COMG05  5 13mm 6mm 11mm M5mm 24mm 10mm 23mm 1.3
COMG06  6.5 15mm 8mm 12mm M5mm 28mm 11mm 26mm 1.6
COMG08  8 19mm 9mm 14mm M6mm 34mm 15mm 30mm 2.6
COMG10  10 22mm 11mm 18mm M8mm 42mm 17mm 34mm 5.2
COMG11  11 22mm 12mm 19mm M8mm 44mm 18mm 36mm 6.8
COMG13  13 30mm 14mm 23mm M10mm 55mm 21mm 42mm 10.6
COMG14  14 30mm 15mm 23mm M10mm 57mm 22mm 44mm 10.9
COMG16 16 33mm 17mm 26mm M12mm 63mm 26mm 50mm 18.6
COMG20  19 33mm 20mm 29mm M12mm 75mm 30mm 54mm 23.9
COMG22  22 44mm 23mm 33mm M14mm 85mm 34mm 61mm 28.5
COMG25  26 45mm 27mm 35mm M14mm 95mm 37mm 65mm 40.6

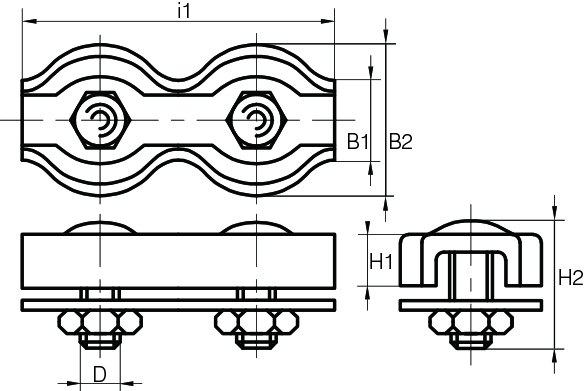

Duplex Wire Rope Grips Zinc Plated

Click to enlarge

Product Code Size b1 b2 d h1 h2 i1 Weight (kgs/100)
GDWRG02  2mm 4mm 12mm 4mm 5mm 14mm 30mm 0.97
GDWRG03  3mm 6mm 14mm 4mm 7mm 14mm 35mm 1.41
GDWRG04  4mm 8mm 18mm 5mm 7mm 18mm 40mm 2.45
GDWRG05  5mm 10mm 20mm 5mm 8mm 18mm 50mm 2.91
GDWRG06  6mm 12mm 24mm 6mm 9mm 23mm 60mm 5
GDWRG08  8mm 17mm 30mm 8mm 13mm 25mm 75mm 10.63
GDWRG10  10mm 21mm 35mm 10mm 16mm 32mm 95mm 17.13

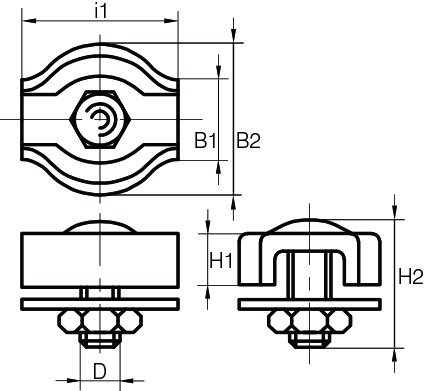

Simplex Wire Rope Grips Zinc Plated

Click to enlarge

Product Code Size b1 b2 d h1 h2 i1 Weight (kgs/100)
GSWRG02  2mm 4mm 12mm 4mm 5mm 14mm 15mm 0.46
GSWRG03  3mm 6mm 14mm 4mm 7mm 14mm 17mm 0.72
GSWRG04  4mm 8mm 18mm 5mm 7mm 18mm 20mm 1.27
GSWRG05  5mm 10mm 20mm 5mm 8mm 18mm 25mm 1.46
GSWRG06  6mm 12mm 24mm 6mm 9mm 23mm 30mm 2.52
GSWRG08  8mm 17mm 30mm 8mm 13mm 25mm 37mm 5.42
GSWRG10  10mm 21mm 35mm 10mm 16mm 32mm 48mm 8.8

Wire Rope Grips DIN 1142 - Galvanised

Click to enlarge

Product Code Rope Diameter A B1 B2 D H1 H2 I Weight (kgs/100)
DING05  5 13mm 7mm 13mm M5mm 25mm 13mm 25mm 2.08
DING06  6.5 17mm 8mm 16mm M6mm 32mm 14mm 30mm 4
DING08  8 20mm 10mm 20mm M8mm 41mm 18mm 39mm 8.2
DING10  10 24mm 12mm 20mm M8mm 46mm 21mm 40mm 9.2
DING13  13 30mm 15mm 28mm M12mm 64mm 29mm 55mm 27.5
DING16  16 35mm 18mm 32mm M14mm 76mm 35mm 64mm 43
DING19  19 36mm 22mm 32mm M14mm 83mm 40mm 68mm 49
DING22  22 40mm 24mm 34mm M16mm 96mm 44mm 74mm 68
DING26  26 50mm 26mm 38mm M20mm 111mm 51mm 84mm 117
