Sockets

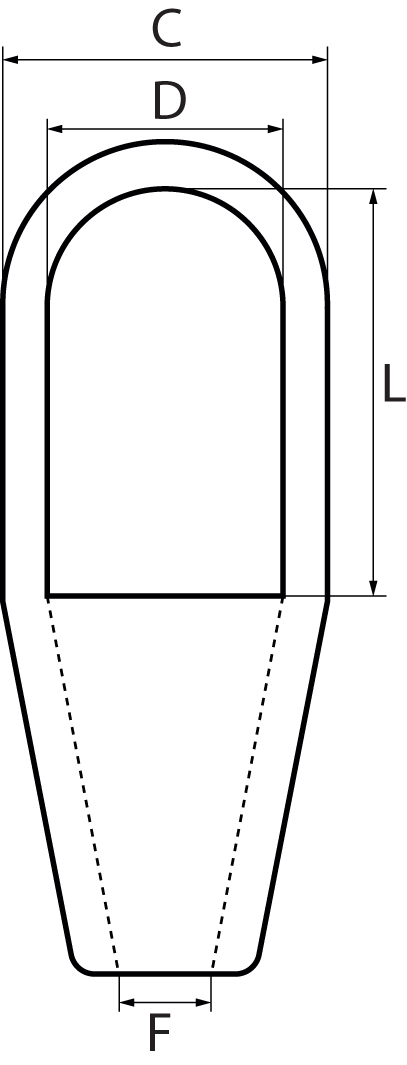

Galvanised Closed Spelter Sockets

Click to enlarge

Product Code Rope Diameter J C D F M A L Weight (kgs/each)
GCS06  6-7mm 116mm 40mm 22mm 10mm 40mm 57mm 46mm 0.23
GCS08  8-10mm 125mm 43mm 25mm 13mm 43mm 57mm 52mm 0.34
GCS11  11-13mm 140mm 51mm 30mm 14mm 51mm 64mm 58mm 0.68
GCS14  14-16mm 162mm 67mm 36mm 18mm 67mm 76mm 65mm 1.13
GCS19  19mm 194mm 76mm 42mm 21mm 70mm 89mm 77mm 1.93

Galvanised Open Spelter Sockets to US Federal Specification

Click to enlarge

Product Code Rope Diameter A B E F J K L M Weight (kgs/each)
GOS06  6-7mm 57mm 39mm 9mm 18mm 116mm 18mm 23mm 41mm 0.5
GOS08  8-10mm 58mm 44mm 13mm 21mm 124mm 21mm 20mm 45mm 0.6
GOS11  11-13mm 63mm 51mm 14mm 24mm 141mm 25mm 25mm 55mm 1.02
GOS14  14-16mm 76mm 63mm 17mm 29mm 171mm 30mm 32mm 60mm 1.81
GOS19  19mm 102mm 89mm 25mm 38mm 233mm 41mm 44mm 88mm 4.47

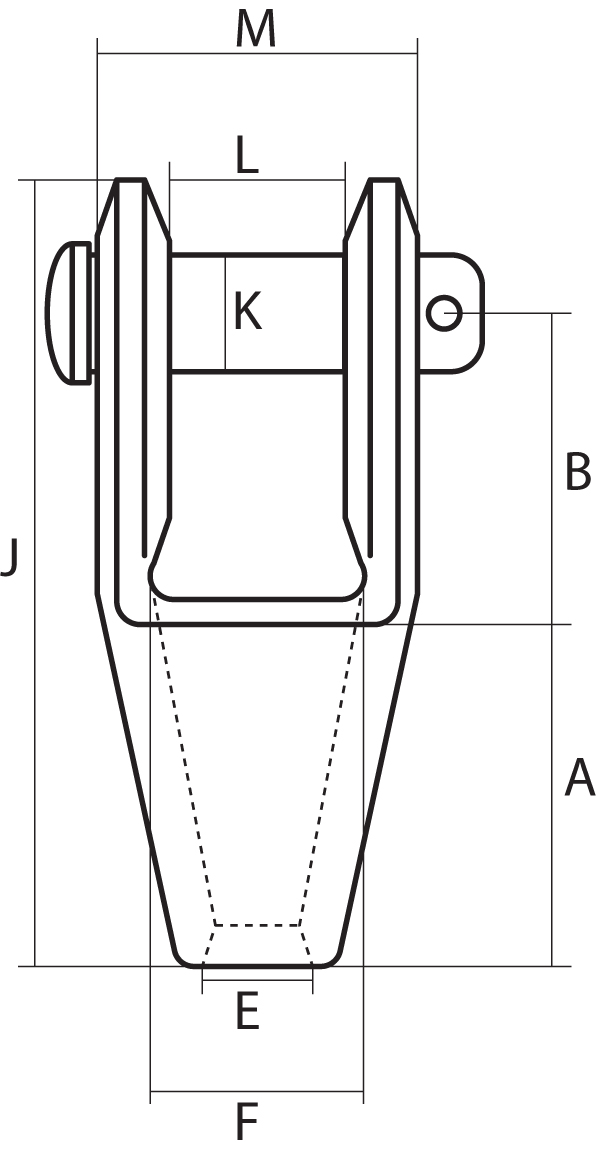

Self Colour Open Socket to BS463

Click to enlarge

Product Code Proof Rope Size A B E F J K L M O Weight (kgs/each)
SOCK06  1mm 6mm 43mm 32mm 8mm 13mm 89mm 13mm 16mm 32mm 29mm 0.3
SOCK08  1.5mm 8mm 43mm 32mm 10mm 16mm 89mm 13mm 16mm 32mm 29mm 0.3
SOCK10  2mm 10mm 50mm 43mm 12mm 19mm 113mm 16mm 22mm 43mm 38mm 0.6
SOCK11  2.5mm 11mm 50mm 43mm 13mm 22mm 113mm 16mm 22mm 43mm 38mm 0.6
SOCK13  4mm 13mm 6mm 48mm 15mm 25mm 135mm 21mm 29mm 48mm 44mm 0.8
SOCK14  4.5mm 14mm 6mm 48mm 17mm 29mm 135mm 21mm 29mm 48mm 44mm 0.8
SOCK16  6mm 16mm 70mm 59mm 18mm 32mm 159mm 24mm 32mm 59mm 50mm 1.1
SOCK19  8.5mm 19mm 76mm 70mm 21mm 38mm 175mm 29mm 38mm 70mm 64mm 1.9
SOCK22  11mm 22mm 86mm 78mm 25mm 44mm 197mm 32mm 43mm 78mm 70mm 2.7
SOCK26  15mm 25mm 105mm 89mm 29mm 50mm 237mm 38mm 48mm 89mm 86mm 4.8
SOCK26  19mm 29mm 114mm 94mm 32mm 57mm 262mm 41mm 50mm 94mm 92mm 6.8
SOCK32  23mm 32mm 133mm 111mm 35mm 64mm 297mm 48mm 54mm 111mm 105mm 10
