Shackles
Commercial Bow Shackles Galvanised Screwed Collar Pin
Click to enlarge
| Product Code | Body | d (Lowercase) | D | W | S | Weight (kgs/100) |
|---|---|---|---|---|---|---|
| COMB05 | 3/16" | 5 mm | 5 mm | 10 mm | 20 mm | 1.80 |
| COMB06 | 1/4" | 6 mm | 6 mm | 12 mm | 24 mm | 3 |
| COMB08 | 5/16 | 8 mm | 8mm | 16 mm | 32mm | 6.5 |
| COMB10 | 3/8" | 10mm | 10mm | 20mm | 40mm | 11.5 |
| COMB11 | 7/16" | 11mm | 11mm | 22mm | 44mm | 16.5 |
| COMB12 | 1/2" | 12mm | 12mm | 24mm | 48mm | 22.7 |
| COMB16 | 5/8" | 16mm | 16mm | 32mm | 64mm | 54.3 |
| COMB20 | 3/4" | 20mm | 20mm | 40mm | 80mm | 100 |
| COMB22 | 7/8" | 22 mm | 22 mm | 44 mm | 88 mm | 141 |
| COMB25 | 1" | 25mm | 25mm | 48mm | 96mm | 228 |

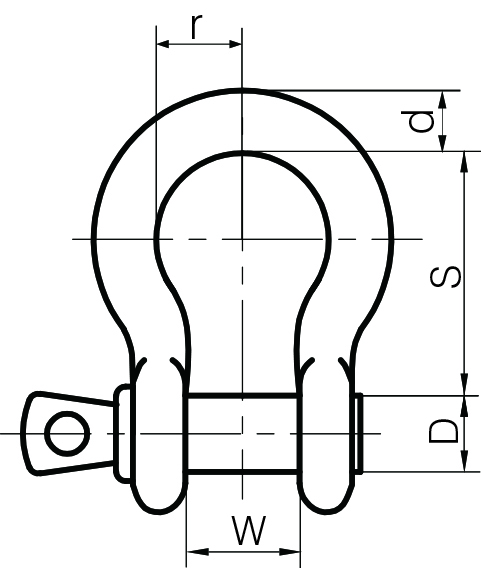

Upset Forged Safety Anchor Bow Shackle US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | S | W | 2 x r | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| YPUFSAB0.5 | 0.5 | 1/4" | 5/16" | 1 1/8" | 15/32" | 3/4" | 0.06 |
| YPUFSAB0.75 | 0.75 | 5/16" | 3/8" | 1 1/4" | 17/32" | 13/16" | 0.09 |
| YPUFSAB1.5 | 1.50 | 7/16" | 1/2" | 1 11/16" | 23/32" | 1 1/16" | 0.24 |
| YPUFSAB1 | 1.00 | 3/8" | 7/16" | 1 7/16" | 21/32" | 15/16" | 0.15 |
| YPUFSAB2 | 2.00 | 1/2" | 5/8" | 1 7/8" | 13/16" | 1 3/16" | 0.39 |
| YPUFSAB3.25 | 3.25 | 5/8" | 3/4" | 2 13/32" | 1 1/16" | 1 1/2" | 0.73 |
| YPUFSAB4.75 | 4.75 | 3/4" | 7/8" | 2 27/32" | 1 1/4" | 1 3/4" | 1.30 |
| YPUFSAB6.5 | 6.50 | 7/8" | 1" | 3 5/16" | 1 7/16" | 2" | 1.82 |
| YPUFSAB8.5 | 8.50 | 1" | 1 1/8" | 3 3/4" | 1 11/16" | 2 5/16" | 2.59 |
| YPUFSAB9.5 | 9.50 | 1 1/8" | 1 1/4" | 4 1/4" | 1 13/16" | 2 5/8" | 3.60 |
| YPUFSAB12 | 12.00 | 1 1/4" | 1 3/8" | 4 11/16" | 2 1/32" | 2 7/8" | 5.12 |
| YPUFSAB13.5 | 13.50 | 1 3/8" | 1 1/2" | 5 1/4" | 2 1/4" | 3 1/4" | 6.96 |

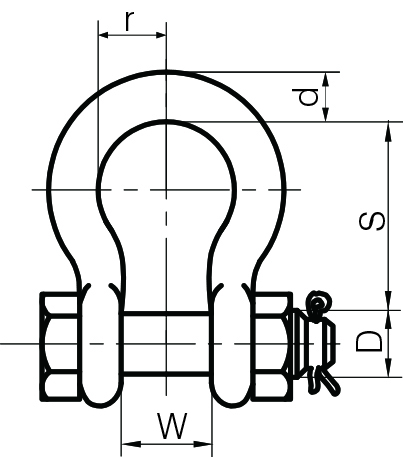

Upset Forged Screw Pin Bow Shackle US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | S | W | 2 x r | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| YPUFSPB0.5 | 0.5 | 1/4" | 5/16" | 1 1/8" | 15/32" | 3/4" | 0.06 |
| YPUFSPB0.75 | 0.75 | 5/16" | 3/8" | 1 1/4" | 17/32" | 13/16" | 0.09 |
| YPUFSPB1.5 | 1.50 | 7/16" | 1/2" | 1 11/16" | 23/32" | 1 1/16" | 0.24 |
| YPUFSPB1 | 1.00 | 3/8" | 7/16" | 1 7/16" | 21/32" | 15/16" | 0.15 |
| YPUFSPB2 | 2.00 | 1/2" | 5/8" | 1 7/8" | 13/16" | 1 3/16" | 0.39 |
| YPUFSPB3.25 | 3.25 | 5/8" | 3/4" | 2 13/32" | 1 1/16" | 1 1/2" | 0.73 |
| YPUFSPB4.75 | 4.75 | 3/4" | 7/8" | 2 27/32" | 1 1/4" | 1 3/4" | 1.30 |
| YPUFSPB6.5 | 6.50 | 7/8" | 1" | 3 5/16" | 1 7/16" | 2" | 1.82 |
| YPUFSPB8.5 | 8.50 | 1" | 1 1/8" | 3 3/4" | 1 11/16" | 2 5/16" | 2.59 |
| YPUFSPB9.5 | 9.50 | 1 1/8" | 1 1/4" | 4 1/4" | 1 13/16" | 2 5/8" | 3.60 |
| YPUFSPB12 | 12.00 | 1 1/4" | 1 3/8" | 4 11/16" | 2 1/32" | 2 7/8" | 5.12 |
| YPUFSPB13.5 | 13.50 | 1 3/8" | 1 1/2" | 5 1/4" | 2 1/4" | 3 1/4" | 6.96 |

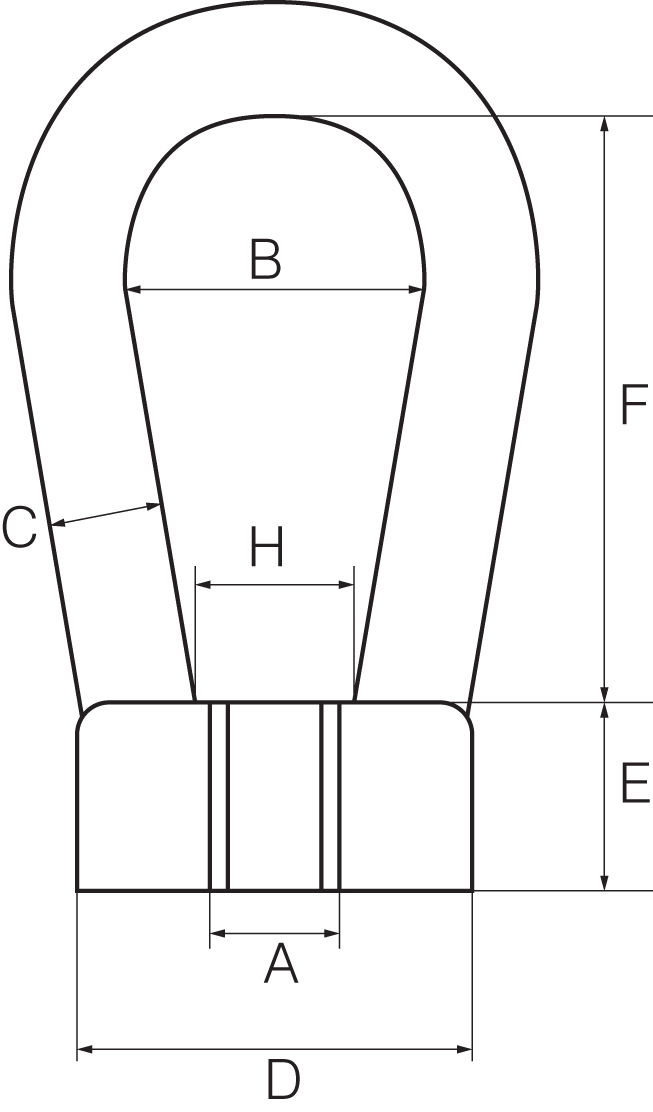

Bownuts to BS 3974 Part 1
Click to enlarge
| Product Code | SWL (tonnes) | A | B | D | E | F | G | H | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|---|---|
| BOW08 | 0.23 | 8" | 25mm | 10mm | 32mm | 16mm | 38mm | 18mm | 0.2 |
| BOW10 | 0.36 | 10" | 25mm | 10mm | 32mm | 16mm | 38mm | 18mm | 0.2 |
| BOW12 | 0.53 | 12" | 30mm | 12mm | 38mm | 18mm | 43mm | 20mm | 0.3 |
| BOW16 | 1.01 | 16" | 30mm | 12mm | 38mm | 18mm | 43mm | 20mm | 0.3 |
| BOW20 | 1.58 | 20" | 40mm | 14mm | 45mm | 25mm | 63mm | 25mm | 0.6 |
| BOW24 | 2.28 | 24" | 50mm | 17mm | 50mm | 28mm | 79mm | 30mm | 0.9 |
| BOW30 | 3.65 | 30" | 75mm | 26mm | 70mm | 38mm | 82mm | 46mm | 0.4 |
| BOW36 | 5.34 | 36" | 75mm | 26mm | 70mm | 38mm | 82mm | 46mm | 2.4 |

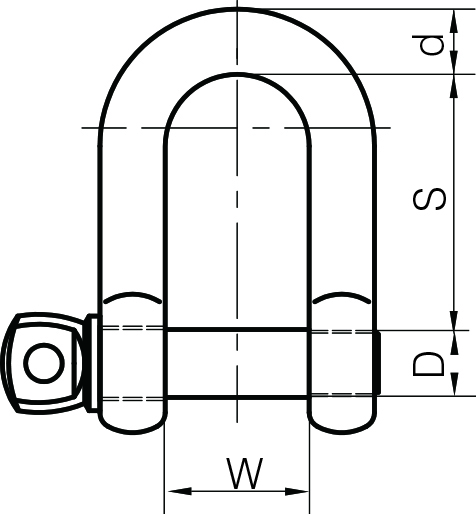

Commercial Dee Shackle Galvanised with Screwed Collar Pin
Click to enlarge
| Product Code | Body | d (Lowercase) | D | W | S | 100M/kg |
|---|---|---|---|---|---|---|
| COMD05 | 3/16" | 5 mm | 5 mm | 10 mm | 20 mm | 1.80 |
| COMD06 | 1/4" | 6 mm | 6 mm | 12 mm | 25 mm | 2.80 |
| COMD08 | 5/16" | 8 mm | 8 mm | 16 mm | 32 mm | 6.40 |
| COMD10 | 3/8" | 10 mm | 10 mm | 20 mm | 40 mm | 10.90 |
| COMD11 | 7/16" | 11 mm | 11 mm | 22 mm | 44 mm | 15.40 |
| COMD12 | 1/2" | 12 mm | 12 mm | 24 mm | 48 mm | 21.40 |
| COMD16 | 5/8" | 16 mm | 16 mm | 32 mm | 64 mm | 55.00 |
| COMD20 | 3/4" | 20 mm | 20 mm | 40 mm | 80 mm | 110.00 |
| COMD22A | 7/8" | 22 mm | 25 mm | 48 mm | 88 mm | 135.00 |
| COMD22 | 7/8" | 22 mm | 22 mm | 44 mm | 88 mm | 123.00 |
| COMD25 | 1" | 25 mm | 25 mm | 50 mm | 96 mm | 197.00 |
Drop Forged Safety Anchor Bow Shackle US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | S | W | 2 x r | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| USSAB1.5 | 1.50 | 7/16" | 1/2" | 1 11/16" | 23/32" | 1 1/16" | 0.24 |
| USSAB1 | 1.00 | 3/8" | 7/16" | 1 7/16" | 21/32" | 15/16" | 0.15 |
| USSAB2 | 2.00 | 1/2" | 5/8" | 1 7/8" | 13/16" | 1 3/16" | 0.39 |
| USSAB3.25 | 3.25 | 5/8" | 3/4" | 2 13/32" | 1 1/16" | 1 1/2" | 0.73 |
| USSAB4.75 | 4.75 | 3/4" | 7/8" | 2 27/32" | 1 1/4" | 1 3/4" | 1.30 |
| USSAB6.5 | 6.50 | 7/8" | 1" | 3 5/16" | 1 7/16" | 2" | 1.82 |
| USSAB8.5 | 8.50 | 1" | 1 1/8" | 3 3/4" | 1 11/16" | 2 5/16" | 2.59 |
| USSAB9.5 | 9.50 | 1 1/8" | 1 1/4" | 4 1/4" | 1 13/16" | 2 5/8" | 3.60 |
| USSAB12 | 12.00 | 1 1/4" | 1 3/8" | 4 11/16" | 2 1/32" | 2 7/8" | 5.12 |
| USSAB13.5 | 13.50 | 1 3/8" | 1 1/2" | 5 1/4" | 2 1/4" | 3 1/4" | 6.96 |
| USSAB17 | 17.00 | 1 1/2" | 1 5/8" | 5 3/4" | 2 3/8" | 3 3/8" | 8.93 |
Drop Forged Safety Dee Shackles US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| USSAD2 | 2.00 | 1/2" | 5/8" | 13/16" | 1 5/8" | 0.38 |
| USSAD3.25 | 3.25 | 5/8" | 3/4" | 1 1/16" | 2" | 0.66 |
| USSAD4.75 | 4.75 | 3/4" | 7/8" | 1 1/4" | 2 3/8" | 1.05 |
| USSAD6.5 | 6.50 | 7/8" | 1" | 1 7/16" | 2 13/16" | 1.46 |
| USSAD8.5 | 8.50 | 1" | 1 1/8" | 1 11/16" | 3 3/16" | 2.59 |
| USSAD9.5 | 9.50 | 1 1/8" | 1 1/4" | 1 13/16" | 3 9/16" | 3.35 |
| USSAD12 | 12.00 | 1 1/4" | 1 3/8" | 2 1.32" | 3 15/16" | 4.71 |
| USSAD13.5 | 13.50 | 1 3/8" | 1 1/2" | 2 1/4" | 4 7/16" | 6.12 |
| USSAD17 | 17.00 | 1 1/2" | 1 5/8" | 2 3/8" | 4 7/8" | 7.60 |
Drop Forged Screw Pin Bow Shackle US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | S | W | 2 x r | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| USSPB0.33 | 0.33 | 3/16" | 1/4" | 7/8" | 3/8" | 9/16" | 0.02 |
| USSPB0.50 | 0.50 | 1/4" | 5/16" | 1 1/8" | 15/32" | 3/4" | 0.06 |
| USSPB0.75 | 0.75 | 5/16" | 3/8" | 1 1/4" | 1732" | 13/16" | 0.09 |
| USSPB1.5 | 1.50 | 7/16" | 1/2" | 1 11/16" | 23/32" | 1 1/16" | 0.24 |
| USSPB1 | 1.00 | 3/8" | 7/16" | 1 7/16" | 21/32" | 15/16" | 0.15 |
| USSPB2 | 2.00 | 1/2" | 5/8" | 1 7/8" | 13/16" | 1 3/16" | 0.39 |
| USSPB3.25 | 3.25 | 5/8" | 3/4" | 2 13/32" | 1 1/16" | 1 1/2" | 0.73 |
| USSPB4.75 | 4.75 | 3/4" | 7/8" | 2 27/32" | 1 1/4" | 1 3/4" | 1.30 |
| USSPB6.5 | 6.50 | 7/8" | 1" | 3 5/16" | 1 7/16" | 2" | 1.82 |
| USSPB8.5 | 8.50 | 1" | 1 1/8" | 3 3/4" | 1 11/16" | 2 5/16" | 2.59 |
| USSPB9.5 | 9.50 | 1 1/8" | 1 1/4" | 4 1/4" | 1 13/16" | 2 5/8" | 3.60 |
| USSPB12 | 12.00 | 1 1/4" | 1 3/8" | 4 11/16" | 2 1/32" | 2 7/8" | 5.12 |
| USSPB13.5 | 13.50 | 1 3/8" | 1 1/2" | 5 1/4" | 2 1/4" | 3 1/4" | 6.96 |
| USSPB17 | 17.00 | 1 1/2" | 1 5/8" | 5 3/4" | 2 3/8" | 3 3/8" | 8.93 |

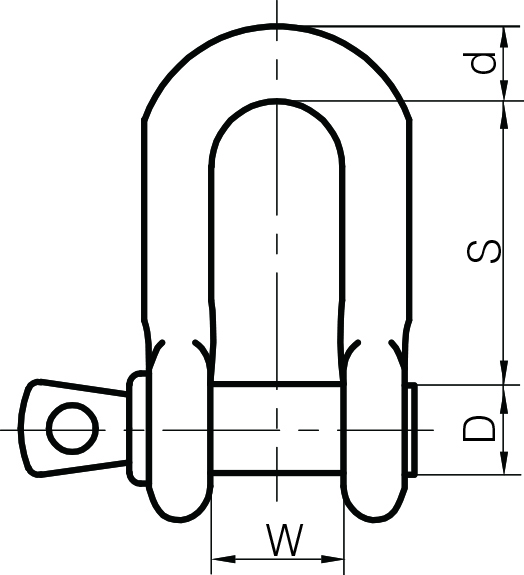

Drop Forged Screw Pin Dee Shackles US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| USSPD0.5 | 0.50 | 1/4" | 5/16" | 15/32" | 7/8" | 0.06 |
| USSPD0.75 | 0.75 | 5/16" | 3/8" | 17/32" | 1 1/32" | 0.08 |
| USSPD1.5 | 1.50 | 7/16" | 1/2" | 23/32" | 1 7/16" | 0.22 |
| USSPD1 | 1.00 | 3/8" | 7/16" | 21/32" | 1 1/4" | 0.14 |
| USSPD2 | 2.00 | 1/2" | 5/8" | 13/16" | 1 5/8" | 0.38 |
| USSPD3.25 | 3.25 | 5/8" | 3/4" | 1 1/16" | 2" | 0.66 |
| USSPD4.75 | 4.75 | 3/4" | 7/8" | 1 1/4" | 2 3/8" | 1.05 |
| USSPD6.5 | 6.50 | 7/8" | 1" | 1 7/16" | 2 13/16" | 1.46 |
| USSPD8.5 | 8.50 | 1" | 1 1/8" | 1 11/16" | 3 3/16" | 2.59 |
| USSPD9.5 | 9.50 | 1 1/8" | 1 1/4" | 1 13/16" | 3 9/16" | 3.35 |
| USSPD12 | 12.00 | 1 1/4" | 1 3/8" | 2 1.32" | 3 15/16" | 4.71 |
| USSPD13.5 | 13.50 | 1 3/8" | 1 1/2" | 2 1/4" | 4 7/16" | 6.12 |
| USSPD17 | 17.00 | 1 1/2" | 1 5/8" | 2 3/8" | 4 7/8" | 7.60 |

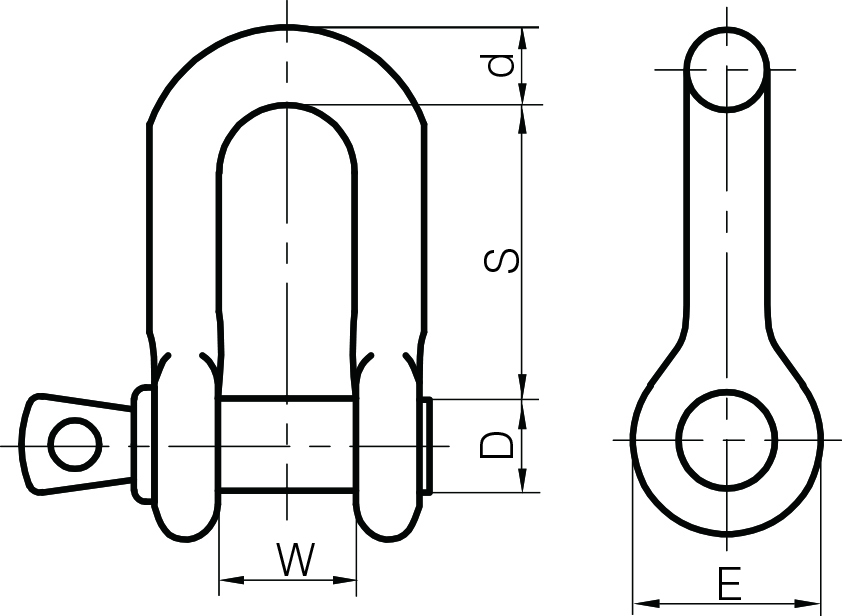

Galvanised Large Dee Shackles to BS 3032 1958 with Type A Pins
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | E | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| BSLDG0.5 | 0.50 | 3/8" | 1/2" | 3/4" | 1 1/2" | 1" | 0.20 |
| BSLDG0.25 | 0.25 | 1/4" | 3/8" | 1/2" | 1" | 3/4" | 0.10 |
| BSLDG0.75 | 0.75 | 1/2" | 5/8" | 1 1/8" | 2 1/8" | 1 1/4" | 0.30 |
| BSLDG1.5 | 1.50 | 5/8" | 3/4" | 1 1/4" | 2 1/2" | 1 1/2" | 0.60 |
| BSLDG2 | 2.00 | 3/4" | 7/8" | 1 1/2" | 2 7/8" | 1 3/4" | 1.00 |
| BSLDG3.75 | 3.75 | 1" | 1 1/8" | 2" | 3 3/4" | 2 1/4" | 2.30 |
| BSLDG3 | 3.00 | 7/8" | 1" | 1 3/4" | 3 1/4" | 2" | 1.60 |
| BSLDG5 | 5.00 | 1 1/8" | 1 1/4" | 2 1/8" | 4 1/8" | 2 1/2" | 3.20 |
| BSLDG6 | 6.00 | 1 1/4" | 1 3/8" | 2 3/8" | 4 1/2" | 2 3/4" | 4.50 |
| BSLDG7 | 7.00 | 1 3/8" | 1 1/2" | 2 5/8" | 5" | 3" | 6.10 |
| BSLDG9.5 | 9.50 | 1 1/2" | 1 3/4" | 2 3/4" | 5 3/8" | 3 1/2" | 8.70 |
| BSLDG11.25 | 11.25 | 1 5/8" | 1 7/8" | 3" | 5 3/4" | 3 3/4" | 10.00 |
Galvanised Small Dee Shackles to BS 3032 1958 Type A Pins
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | E | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| BSSDG0.3 | 0.30 | 1/4" | 3/8" | 3/8" | 7/8" | 3/4" | 0.06 |
| BSSDG0.6 | 0.60 | 3/8" | 1/2" | 5/8" | 1 3/8" | 1" | 0.10 |
| BSSDG1.75 | 1.75 | 5/8" | 3/4" | 1" | 2 1/4" | 1 1/2" | 0.60 |
| BSSDG1 | 1.00 | 1/2" | 5/8" | 7/8" | 1 7/8" | 1 1/4" | 0.30 |
| BSSDG2.5 | 2.50 | 3/4" | 7/8" | 1 1/4" | 2 3/4" | 1 3/4" | 1.00 |
| BSSDG3.5 | 3.50 | 7/8" | 1" | 1 3/8" | 3 1/4" | 2" | 1.50 |
| BSSDG4.5 | 4.50 | 1" | 1 1/8" | 1 1/2" | 3 5/8" | 2 1/4" | 2.30 |
| BSSDG5.5 | 5.50 | 1 1/8" | 1 1/4" | 1 3/4" | 4 1/8" | 2 1/2" | 3.30 |
| BSSDG7 | 7.00 | 1 1/4" | 1 3/8" | 1 7/8" | 4 1/2" | 2 3/4" | 4.40 |
| BSSDG8 | 8.00 | 1 3/8" | 1 1/2" | 2 1/8" | 5" | 3" | 6.00 |
| BSSDG10.75 | 10.75 | 1 1/2" | 1 3/4" | 2 3/4" | 5 1/2" | 3 1/2" | 8.60 |
| BSSDG13 | 13.00 | 1 5/8" | 1 7/8" | 2 1/2" | 5 7/8" | 3 3/4" | 9.50 |

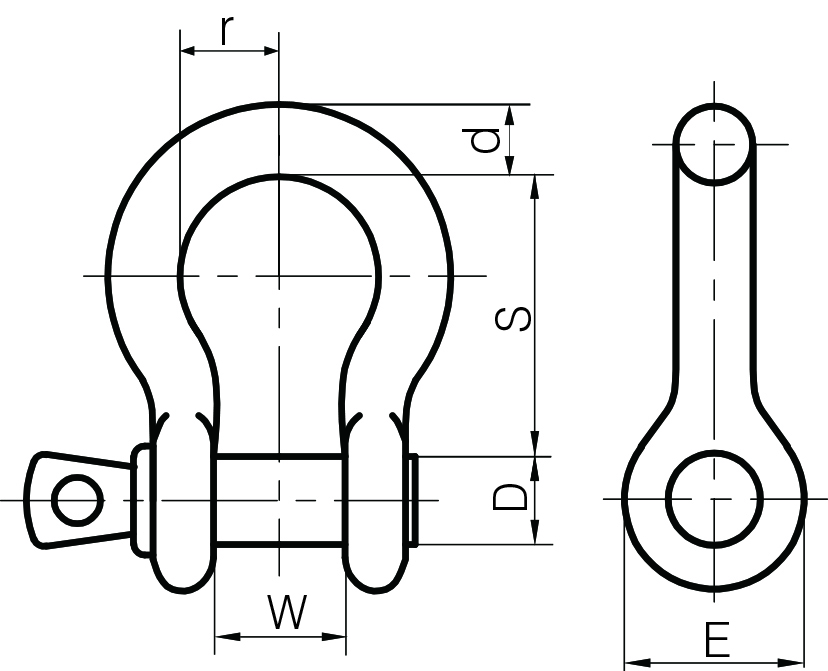

Large Bow Galvanised Shackles to BS 3032 1958 with Type A Pin
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | W | 2 x r | S | E | Weight (kgs/100) |
|---|---|---|---|---|---|---|---|---|
| BSLBG0.15 | 0.15 | 1/4" | 3/8" | 1/2" | 3/4" | 1 1/8" | 3/4" | 0.08 |
| BSLBG0.45 | 0.45 | 3/8" | 1/2" | 5/8" | 1" | 1 5/8" | 1" | 0.10 |
| BSLBG0.75 | 0.75 | 1/2" | 5/8" | 7/8" | 1 1/4" | 2 1/8" | 1 1/4" | 0.30 |
| BSLBG1.25 | 1.25 | 5/8" | 3/4" | 1 1/8" | 1 5/8" | 2 3/4" | 1 1/2" | 0.60 |
| BSLBG2.75 | 2.75 | 7/8" | 1" | 1 5/8" | 2 1/4" | 3 7/8" | 2" | 1.60 |
| BSLBG2 | 2.00 | 3/4" | 7/8" | 1 3/8" | 2" | 3 3/8" | 1 3/4" | 1.00 |
| BSLBG3.75 | 3.75 | 1" | 1 1/8" | 1 3/4" | 2 1/2" | 4 1/4" | 2 1/4" | 2.40 |
| BSLBG4.75 | 4.75 | 1 1/8" | 1 1/4" | 2" | 2 7/8" | 4 7/8" | 2 1/2" | 3.40 |
| BSLBG5.75 | 5.75 | 1 1/4" | 1 3/8" | 2 1/4" | 3 1/4" | 5 3/8" | 2 3/4" | 4.80 |
| BSLBG7.25 | 7.25 | 1 3/8" | 1 1/2" | 2 1/2" | 3 1/2" | 6" | 3" | 6.20 |
| BSLBG8.5 | 8.50 | 1 1/2" | 1 3/4" | 2 3/4" | 3 7/8" | 6 5/8" | 3 1/2" | 9.10 |
| BSLBG9.5 | 9.50 | 1 5/8" | 1 7/8" | 3" | 4 3/8" | 7 3/8" | 3 3/4" | 10.40 |
| BSLBG11.5 | 11.50 | 1 3/4" | 2" | 3 3/8" | 4 3/4" | 8 1/8" | 4" | 13.10 |
| BSLBG13 | 13.00 | 1 7/8" | 2 1/8" | 3 5/8" | 5 1/8" | 8 3/4" | 4 1/4" | 15.90 |
Large Bow Self Colour Shackles to BS 3032 1958 with Type A Pin
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | W | 2 x r | S | E | Weight (kgs/100) |
|---|---|---|---|---|---|---|---|---|
| BSLB0.15 | 0.15 | 1/4" | 3/8" | 1/2" | 3/4" | 1 1/8" | 3/4" | 0.08 |
| BSLB0.45 | 0.45 | 3/8" | 1/2" | 5/8" | 1" | 1 5/8" | 1" | 0.10 |
| BSLB0.75 | 0.75 | 1/2" | 5/8" | 7/8" | 1 1/4" | 2 1/8" | 1 1/4" | 0.30 |
| BSLB1.25 | 1.25 | 5/8" | 3/4" | 1 1/8" | 1 5/8" | 2 3/4" | 1 1/2" | 0.60 |
| BSLB2.75 | 2.75 | 7/8" | 1" | 1 5/8" | 2 1/4" | 3 7/8" | 2" | 1.60 |
| BSLB2 | 2.00 | 3/4" | 7/8" | 1 3/8" | 2" | 3 3/8" | 1 3/4" | 1.00 |
| BSLB3.75 | 3.75 | 1" | 1 1/8" | 1 3/4" | 2 1/2" | 4 1/4" | 2 1/4" | 2.40 |
| BSLB4.75 | 4.75 | 1 1/8" | 1 1/4" | 2" | 2 7/8" | 4 7/8" | 2 1/2" | 3.40 |
| BSLB5.75 | 5.75 | 1 1/4" | 1 3/8" | 2 1/4" | 3 1/4" | 5 3/8" | 2 3/4" | 4.80 |
| BSLB7.25 | 7.25 | 1 3/8" | 1 1/2" | 2 1/2" | 3 1/2" | 6" | 3" | 6.20 |
| BSLB8.5 | 8.50 | 1 1/2" | 1 3/4" | 2 3/4" | 3 7/8" | 6 5/8" | 3 1/2" | 9.10 |
| BSLB9.5 | 9.50 | 1 5/8" | 1 7/8" | 3" | 4 3/8" | 7 3/8" | 3 3/4" | 10.40 |
| BSLB11.5 | 11.50 | 1 3/4" | 2" | 3 3/8" | 4 3/4" | 8 1/8" | 4" | 13.10 |
| BSLB13 | 13.00 | 1 7/8" | 2 1/8" | 3 5/8" | 5 1/8" | 8 3/4" | 4 1/4" | 15.90 |
Large Dee Shackles to BS 3032 1958 with Type A Pins
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | E | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| BSLD0.5 | 0.50 | 3/8" | 1/2" | 3/4" | 1 1/2" | 1" | 0.20 |
| BSLD0.25 | 0.25 | 1/4" | 3/8" | 1/2" | 1" | 3/4" | 0.10 |
| BSLD0.75 | 0.75 | 1/2" | 5/8" | 1 1/8" | 2 1/8" | 1 1/4" | 0.30 |
| BSLD1.5 | 1.50 | 5/8" | 3/4" | 1 1/4" | 2 1/2" | 1 1/2" | 0.60 |
| BSLD2 | 2.00 | 3/4" | 7/8" | 1 1/2" | 2 7/8" | 1 3/4" | 1.00 |
| BSLD3.75 | 3.75 | 1" | 1 1/8" | 2" | 3 3/4" | 2 1/4" | 2.30 |
| BSLD3 | 3.00 | 7/8" | 1" | 1 3/4" | 3 1/4" | 2" | 1.60 |
| BSLD5 | 5.00 | 1 1/8" | 1 1/4" | 2 1/8" | 4 1/8" | 2 1/2" | 3.20 |
| BSLD6 | 6.00 | 1 1/4" | 1 3/8" | 2 3/8" | 4 1/2" | 2 3/4" | 4.50 |
| BSLD7 | 7.00 | 1 3/8" | 1 1/2" | 2 5/8" | 5" | 3" | 6.10 |
| BSLD9.5 | 9.50 | 1 1/2" | 1 3/4" | 2 3/4" | 5 3/8" | 3 1/2" | 8.70 |
| BSLD11.25 | 11.25 | 1 5/8" | 1 7/8" | 3" | 5 3/4" | 3 3/4" | 10.00 |

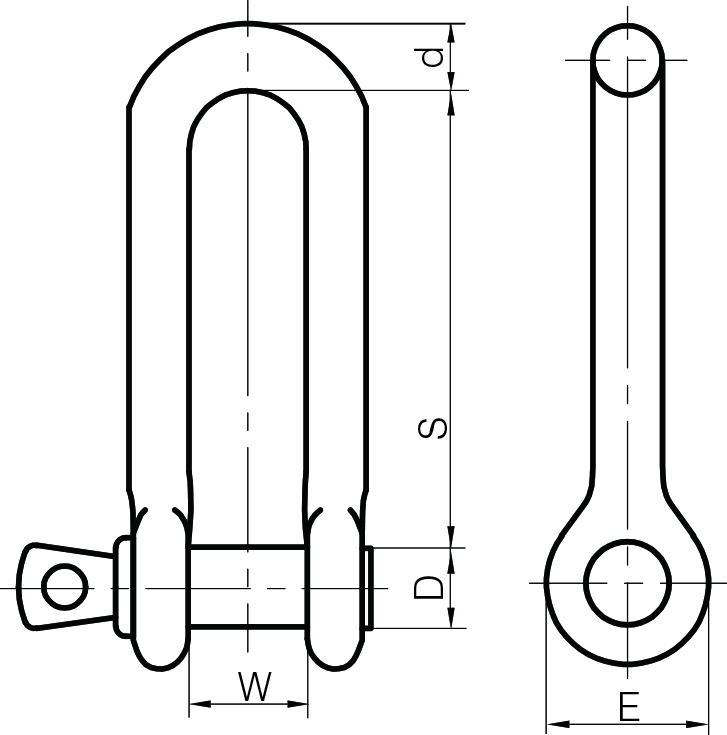

Piling Shackles Self Colour Tested and Certified
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | E | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| PS1.5 | 1.50 | 5/8" | 3/4" | 8" | 1 1/4" | 1 1/2" | 0.95 |
| PS1 | 1.00 | 1/2" | 5/8" | 6" | 7/8" | 1 1/4" | 0.55 |
| PS2 | 2.00 | 3/4" | 7/8" | 8" | 1 1/2" | 1 3/4" | 1.64 |
| PS3 | 3.00 | 7/8" | 1" | 10" | 1 3/4" | 2" | 2.29 |
| PS5 | 5.00 | 1 1/8" | 1 1/4" | 12" | 2 1/8" | 2 1/2" | 5.05 |
Small Bow Galvanised Shackles to BS 3032 1958 with Type A Pin
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | W | 2 x r | S | E | Weight (kgs/100) |
|---|---|---|---|---|---|---|---|---|
| BSSBG0.2 | 0.20 | 1/4" | 3/8" | 1/2" | 5/8" | 1" | 3/4" | 0.08 |
| BSSBG0.5 | 0.50 | 3/8" | 1/2" | 5/8" | 1 1/2" | 7/8" | 1" | 0.1 |
| BSSBG1 | 1.00 | 1/2" | 5/8" | 7/8" | 2" | 1 1/8" | 1 1/4" | 0.3 |
| BSSBG1.5 | 1.50 | 5/8" | 3/4" | 1 1/8" | 2 1/2" | 1 1/2" | 1 1/2" | 0.7 |
| BSSBG2 | 2.00 | 3/4" | 7/8" | 1 3/8" | 3" | 1 3/4" | 1 3/4" | 1 |
| BSSBG3 | 3.00 | 7/8" | 1" | 1 1/2" | 3 1/2" | 2" | 2" | 1.6 |
| BSSBG4 | 4.00 | 1" | 1 1/8" | 1 3/4" | 4" | 2 3/8" | 2 1/4" | 2.4 |
| BSSBG5 | 5.00 | 1 1/8" | 1 1/4" | 2" | 4 1/2" | 2 5/8" | 2 1/2" | 3.3 |
| BSSBG6.25 | 6.25 | 1 1/4" | 1 3/8" | 2 1/4" | 5" | 3" | 2 3/4" | 4.6 |
| BSSBG7.5 | 7.50 | 1 3/8" | 1 1/2" | 2 3/8" | 5 1/2" | 3 1/4" | 3" | 6.3 |
| BSSBG9.25 | 9.25 | 1 1/2" | 1 3/4" | 2 5/8" | 6" | 3 1/2" | 3 1/2" | 8.8 |
| BSSBG10.5 | 10.50 | 1 5/8" | 1 7/8" | 2 7/8" | 6 1/2" | 3 7/8" | 3 3/4" | 10.10 |
| BSSBG12.5 | 12.50 | 1 3/4" | 2" | 3/18" | 7" | 4 1/8" | 4" | 13.00 |
Small Bow Self Colour Shackles to BS 3032 1958 with Type A Pin
Click to enlarge
| Product Code | SWL (Tonnes) | d (Lowercase) | D | W | 2 x r | S | E | Weight (kgs/100) |
|---|---|---|---|---|---|---|---|---|
| BSSB0.2 | 0.20 | 1/4" | 3/8" | 1/2" | 5/8" | 1" | 3/4" | 0.08 |
| BSSB0.5 | 0.50 | 3/8" | 1/2" | 5/8" | 1 1/2" | 7/8" | 1" | 0.1 |
| BSSB1.5 | 1.50 | 5/8" | 3/4" | 1 1/8" | 2 1/2" | 1 1/2" | 1 1/2" | 0.7 |
| BSSB1 | 1.00 | 1/2" | 5/8" | 7/8" | 2" | 1 1/8" | 1 1/4" | 0.3 |
| BSSB2 | 2.00 | 3/4" | 7/8" | 1 3/8" | 3" | 1 3/4" | 1 3/4" | 1 |
| BSSB3 | 3.00 | 7/8" | 1" | 1 1/2" | 3 1/2" | 2" | 2" | 1.6 |
| BSSB4 | 4.00 | 1" | 1 1/8" | 1 3/4" | 4" | 2 3/8" | 2 1/4" | 2.4 |
| BSSB5 | 5.00 | 1 1/8" | 1 1/4" | 2" | 4 1/2" | 2 5/8" | 2 1/2" | 3.3 |
| BSSB6.25 | 6.25 | 1 1/4" | 1 3/8" | 2 1/4" | 5" | 3" | 2 3/4" | 4.6 |
| BSSB7.5 | 7.50 | 1 3/8" | 1 1/2" | 2 3/8" | 5 1/2" | 3 1/4" | 3" | 6.3 |
| BSSB9.25 | 9.25 | 1 1/2" | 1 3/4" | 2 5/8" | 6" | 3 1/2" | 3 1/2" | 8.8 |
| BSSB10.5 | 10.50 | 1 5/8" | 1 7/8" | 2 7/8" | 6 1/2" | 3 7/8" | 3 3/4" | 10.10 |
| BSSB12.5 | 12.50 | 1 3/4" | 2" | 3/18" | 7" | 4 1/8" | 4" | 13.00 |
Small Dee Shackles to BS 3032 1958 Type A Pins
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | E | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| BSSD0.3 | 0.30 | 1/4" | 3/8" | 3/8" | 7/8" | 3/4" | 0.06 |
| BSSD0.6 | 0.60 | 3/8" | 1/2" | 5/8" | 1 3/8" | 1" | 0.10 |
| BSSD1.75 | 1.75 | 5/8" | 3/4" | 1" | 2 1/4" | 1 1/2" | 0.60 |
| BSSD1 | 1.00 | 1/2" | 5/8" | 7/8" | 1 7/8" | 1 1/4" | 0.30 |
| BSSD2.5 | 2.50 | 3/4" | 7/8" | 1 1/4" | 2 3/4" | 1 3/4" | 1.00 |
| BSSD3.5 | 3.50 | 7/8" | 1" | 1 3/8" | 3 1/4" | 2" | 1.50 |
| BSSD4.5 | 4.50 | 1" | 1 1/8" | 1 1/2" | 3 5/8" | 2 1/4" | 2.30 |
| BSSD5.5 | 5.50 | 1 1/8" | 1 1/4" | 1 3/4" | 4 1/8" | 2 1/2" | 3.30 |
| BSSD7 | 7.00 | 1 1/4" | 1 3/8" | 1 7/8" | 4 1/2" | 2 3/4" | 4.40 |
| BSSD8 | 8.00 | 1 3/8" | 1 1/2" | 2 1/8" | 5" | 3" | 6.00 |
| BSSD10.75 | 10.75 | 1 1/2" | 1 3/4" | 2 3/4" | 5 1/2" | 3 1/2" | 8.60 |
| BSSD13 | 13.00 | 1 5/8" | 1 7/8" | 2 1/2" | 5 7/8" | 3 3/4" | 9.50 |
Upset Forged Safety Dee Shackles US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| YPUFSAD2 | 2.00 | 1/2" | 5/8" | 13/16" | 1 5/8" | 0.38 |
| YPUFSAD3.25 | 3.25 | 5/8" | 3/4" | 1 1/16" | 2" | 0.66 |
| YPUFSAD4.75 | 4.75 | 3/4" | 7/8" | 1 1/4" | 2 3/8" | 1.05 |
| YPUFSAD6.5 | 6.50 | 7/8" | 1" | 1 7/16" | 2 13.16" | 1.46 |
| YPUFSAD8.5 | 8.50 | 1" | 1 1/8" | 1 11/16" | 3 3/16" | 2.59 |
| YPUFSAD9.5 | 9.50 | 1 1/8" | 1 1/4" | 1 13/16" | 3 9/16" | 3.35 |
| YPUFSAD12 | 12.00 | 1 1/4" | 1 3/8" | 2 1/32" | 3 15/16" | 4.71 |
| YPUFSAD13.5 | 13.50 | 1 3/8" | 1 1/2" | 2 1/4" | 4 7/16" | 6.12 |
| YPUFSAD17 | 17.00 | 1 1/2" | 1 5/8" | 2 3/8" | 4 7/8" | 7.60 |
| YPUFSAD25 | 25.00 | 1 3/4" | 2" | 2 7/8" | 5 3/4" | 13.00 |
Upset Forged Screw Pin Dee Shackles US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| YPUFSPD0.5 | 0.50 | 1/4" | 5/16" | 15/32" | 7/8" | 0.05 |
| YPUFSPD0.75 | 0.75 | 5/16" | 3/8" | 17/32" | 1 1/32" | 0.08 |
| YPUFSPD1.5 | 1.50 | 7/16" | 1/2" | 23/32" | 1 7/16" | 0.22 |
| YPUFSPD1 | 1.00 | 3/8" | 7/16" | 21/32" | 1 1/4" | 0.14 |
Upset Forged Srew Pin Dee Shackles US Federal Specification RR-C-271D IV
Click to enlarge
| Product Code | SWL (tonnes) | d (Lowercase) | D | W | S | Weight (kgs/each) |
|---|---|---|---|---|---|---|
| YPUFSPD2 | 2.00 | 1/2" | 5/8" | 13/16" | 1 5/8" | 0.38 |
| YPUFSPD3.25 | 3.25 | 5/8" | 3/4" | 1 1/16" | 2" | 0.66 |
| YPUFSPD4.75 | 4.75 | 3/4" | 7/8" | 1 1/4" | 2 3/8" | 1.05 |
| YPUFSPD6.5 | 6.50 | 7/8" | 1" | 1 7/16" | 2 13.16" | 1.46 |
| YPUFSPD8.5 | 8.50 | 1" | 1 1/8" | 1 11/16" | 3 3/16" | 2.59 |
| YPUFSPD9.5 | 9.50 | 1 1/8" | 1 1/4" | 1 13/16" | 3 9/16" | 3.35 |
| YPUFSPD12 | 12.00 | 1 1/4" | 1 3/8" | 2 1/32" | 3 15/16" | 4.71 |
| YPUFSPD13.5 | 13.50 | 1 3/8" | 1 1/2" | 2 1/4" | 4 7/16" | 6.12 |
| YPUFSPD17 | 17.00 | 1 1/2" | 1 5/8" | 2 3/8" | 4 7/8" | 7.60 |
| YPUFSPD25 | 25.00 | 1 3/4" | 2" | 2 7/8" | 5 3/4" | 13.00 |
