Quick Links

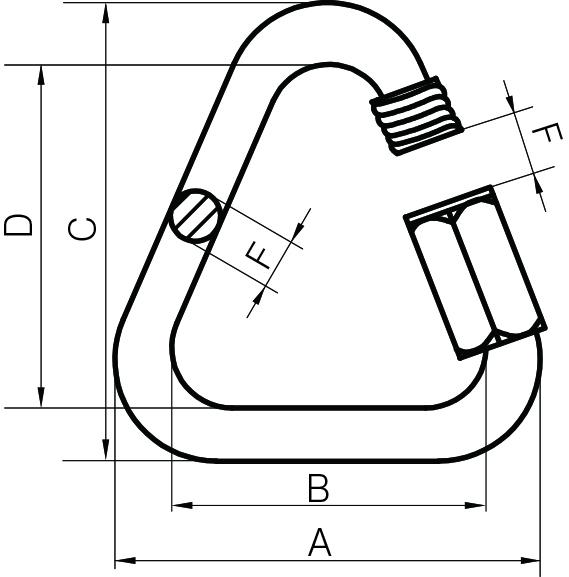

Delta Type Quick Links Zinc Plated

Click to enlarge

Product Code Size A B C D E F Weight (kg/each)
ZPDQL03.5 3.5mm 32mm 25mm 36mm 28mm 5mm 5mm 0.008
ZPDQL04  4mm 35mm 27mm 39mm 32mm 6mm 6mm 0.011
ZPDQL05  5mm 39mm 29mm 48mm 38mm 6mm 7mm 0.022
ZPDQL06  6mm 48mm 36mm 56mm 44mm 7mm 10mm 0.038
ZPDQL08  8mm 56mm 40mm 73mm 56mm 10mm 12mm 0.08
ZPDQL10  10mm 61mm 41mm 77mm 61mm 11mm 13mm 0.145
ZPDQL12  12mm 75mm 51mm 105mm 79mm 15mm 15mm 0.225

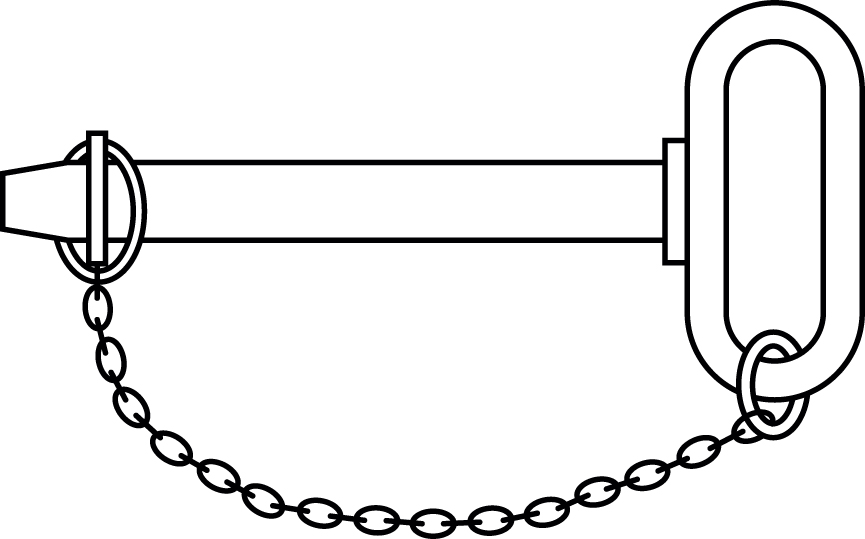

Drop Handle Towing Pins

Click to enlarge

Product Code Size Finish
DFTPL  25mm Yellow Passivated
DFTPM  22mm Yellow Passivated
DFTPS 19mm Yellow Passivated

Long Series Quick Links Zinc Plated (Standard & Long Series)

Click to enlarge

Product Code Size d A B B1 C Weight (kg/100)
COMLQL03.5  3.5mm 10mm 29mm 39mm 5mm 1
COMLQL05  5mm 13mm 38mm 52mm 6.5mm 2.2
COMLQL06  6mm 14mm 45mm 58mm 7.5mm 4
COMLQL08  8mm 18mm 60mm 72mm 10mm 8
COMLQL10  10mm 20mm 69mm 85mm 12mm 14
COMLQL12  12mm 25mm 83mm 100mm 15mm 22

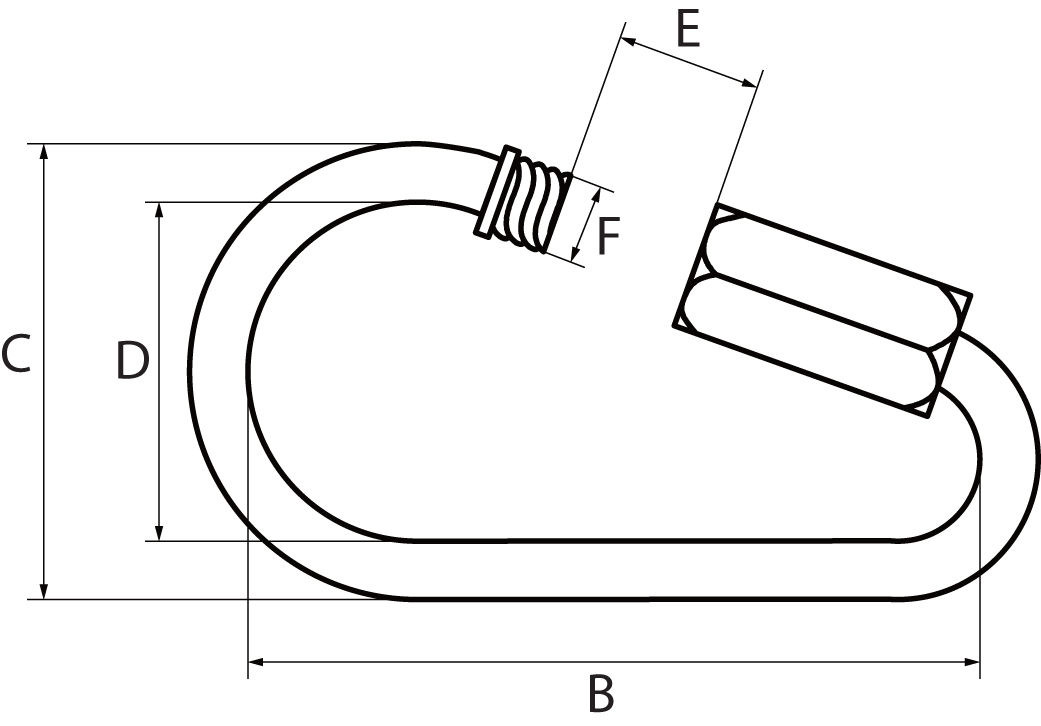

Pear Type Quick Links Zinc Plated

Click to enlarge

Product Code Size A B C D E F Weight (kg/each)
ZPPQL03.5  3.5mm 52mm 45mm 27mm 21mm 10mm 5mm 0.008
ZPPQL04  4mm 58mm 50mm 32mm 24mm 11mm 6mm 0.018
ZPPQL05  5mm 71mm 61mm 37mm 26mm 13mm 7mm 0.022
ZPPQL06  6mm 81mm 69mm 43mm 30mm 14mm 10mm 0.038
ZPPQL08  8mm 100mm 84mm 51mm 36mm 18mm 11mm 0.08
ZPPQL12  10mm 118mm 98mm 64mm 43mm 21mm 13mm 0.145

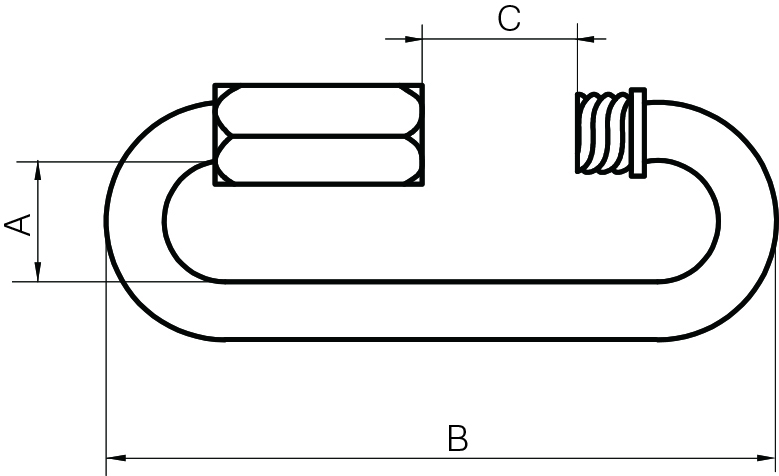

Standard Quick Links Zinc Plated (Standard & Long Series)

Click to enlarge

Product Code Size d A B B1 C Weight (kg/100)
COMQL03.5  3.5mm 10mm 29mm 39mm 5mm 1
COMQL04  4mm 11.5mm 31.5mm 5.5mm 1.1
COMQL05  5mm 13mm 38mm 52mm 6.5mm 2.2
COMQL06  6mm 14mm 45mm 58mm 7.5mm 4
COMQL07  7mm 16mm 52mm 8mm 6
COMQL08  8mm 18mm 60mm 72mm 10mm 8
COMQL09  9mm 19mm 65mm 11mm 11
COMQL10  10mm 20mm 69mm 85mm 12mm 14
COMQL12  12mm 25mm 83mm 100mm 15mm 22
COMQL16  16mm 29mm 108mm 19mm 36.2
