Loadbinders
Alloy Steel Clevis Grab Hooks Zinc Plated
Click to enlarge
| Product Code | Chain Diameter | B | E | P | R | Breaking Load (kgs) | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| PCGH06 | 6mm | 9mm | 10mm | 10mm | 50mm | 6000 | 0.18 |
| PCGH08 | 8mm | 10mm | 11mm | 11mm | 57mm | 9000 | 0.36 |
| PCGH10 | 10mm | 12mm | 13mm | 12mm | 67mm | 13000 | 0.45 |
| PCGH12 | 13mm | 19mm | 17mm | 16mm | 81mm | 22000 | 0.95 |
Alloy Steel Clevis Slip Hooks Zinc Plated
Click to enlarge
| Product Code | Chain Diameter | B | E | P | R | Breaking Load (kgs) | Weight (kgs/each) |
|---|---|---|---|---|---|---|---|
| PCSH06 | 6mm | 11mm | 24mm | 10mm | 65mm | 4500 | 0.23 |
| PCSH08 | 118mm | 13mm | 27mm | 11mm | 73mm | 7000 | 0.34 |
| PCSH10 | 10mm | 15mm | 33mm | 12mm | 83mm | 8600 | 0.55 |
| PCSH13 | 13mm | 19mm | 43mm | 16mm | 102mm | 15000 | 1.27 |

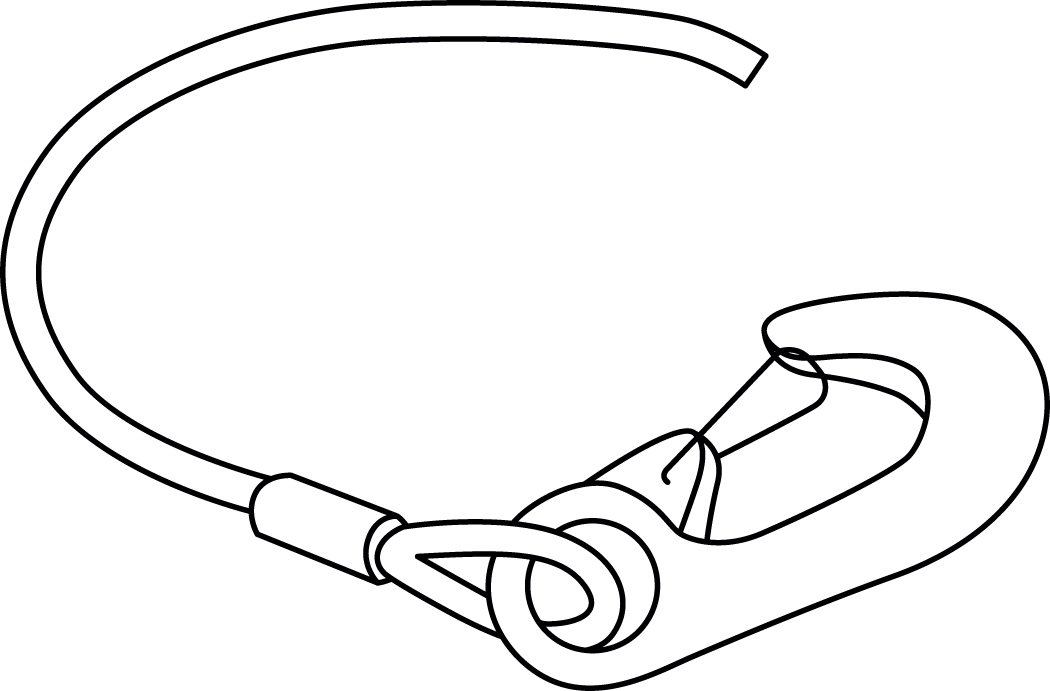

Hand Winch Cables fitted with Winch Hook
Click to enlarge
| Product Code | Diameter | Length (metres) | Suit Winch (lbs) |
|---|---|---|---|
| HWC4 | 4mm | 15 | 600 & 1000 |
| HWC5 | 5mm | 15 | 1200 & 1400 |
| HWC6 | 6mm | 15 | 2000 |
| HWC8 | 8mm | 15 | 2500 |

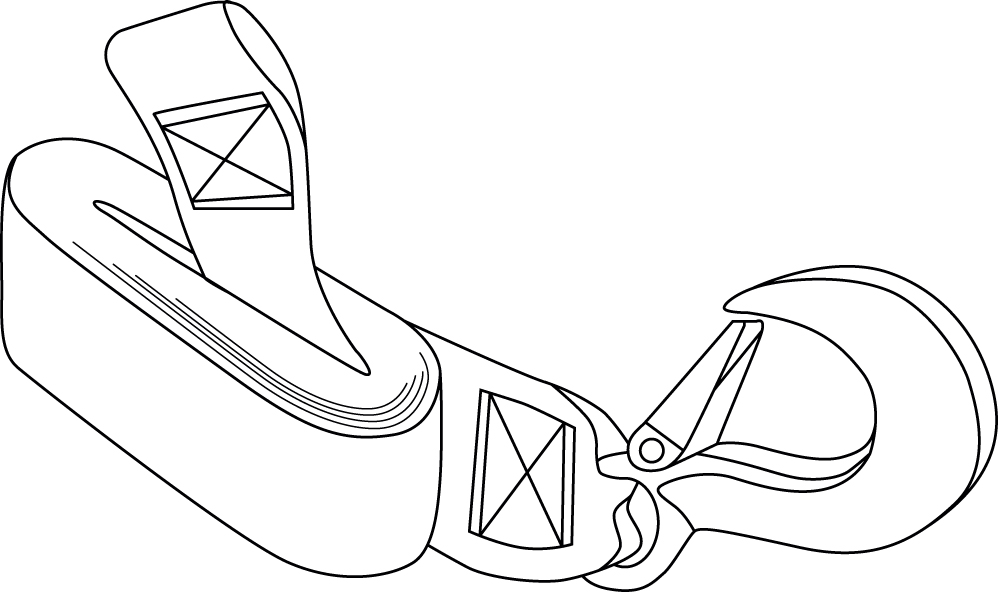

Hand Winch Strap with Winch Hook & sewn Eye (to suit Hand Winches)
Click to enlarge
| Product Code | Width | Length (metres) |
|---|---|---|
| HWS5 | 50mm | 5 |
| HWS6 | 50mm | 6 |
| HWS7 | 50mm | 7 |

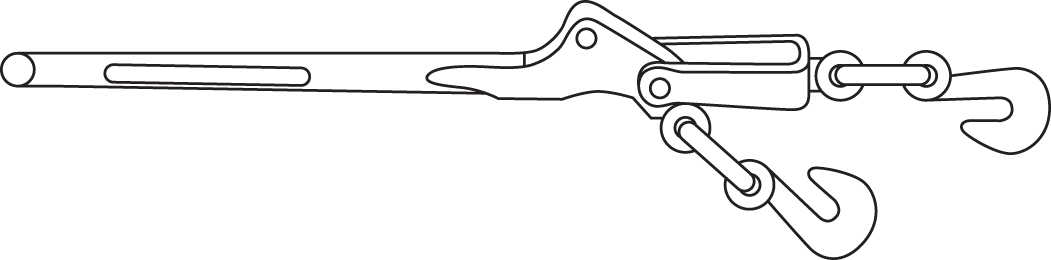

Loadbinders Drop Forged
Click to enlarge
| Product Code | Diameter | Ultimate (lbs) | Weight (kgs/each) |
|---|---|---|---|
| DFL06 | 1/4 - 5/16 " | 7800 | 1.60 |
| DFL08 | 5/16 - 3/8 " | 19000 | 3.81 |
| DFL10 | 3/8 - 1/2 " | 33000 | 6.66 |

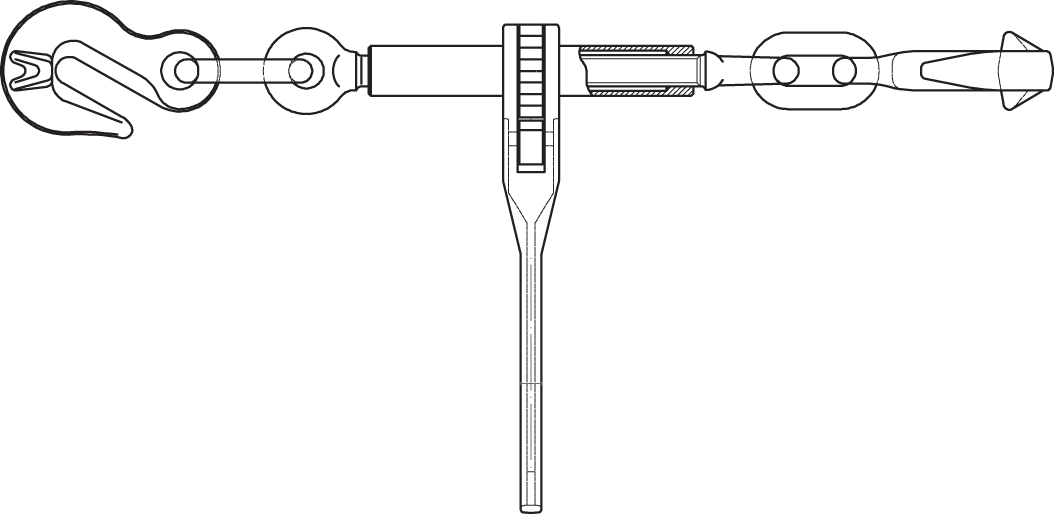

Ratchet Loadbinders Drop Forged
Click to enlarge
| Product Code | Diameter | Ultimate (lbs) | Weight (kgs/each) |
|---|---|---|---|
| RLB08 | 5/16 - 3/8 " | 19000 | 4.75 |
| RLB10 | 3/8 - 1/2 " | 33000 | 5.85 |
| RLB12 | 1/2 - 5/8 " | 46000 | 6.54 |
