Galvanised Swivels

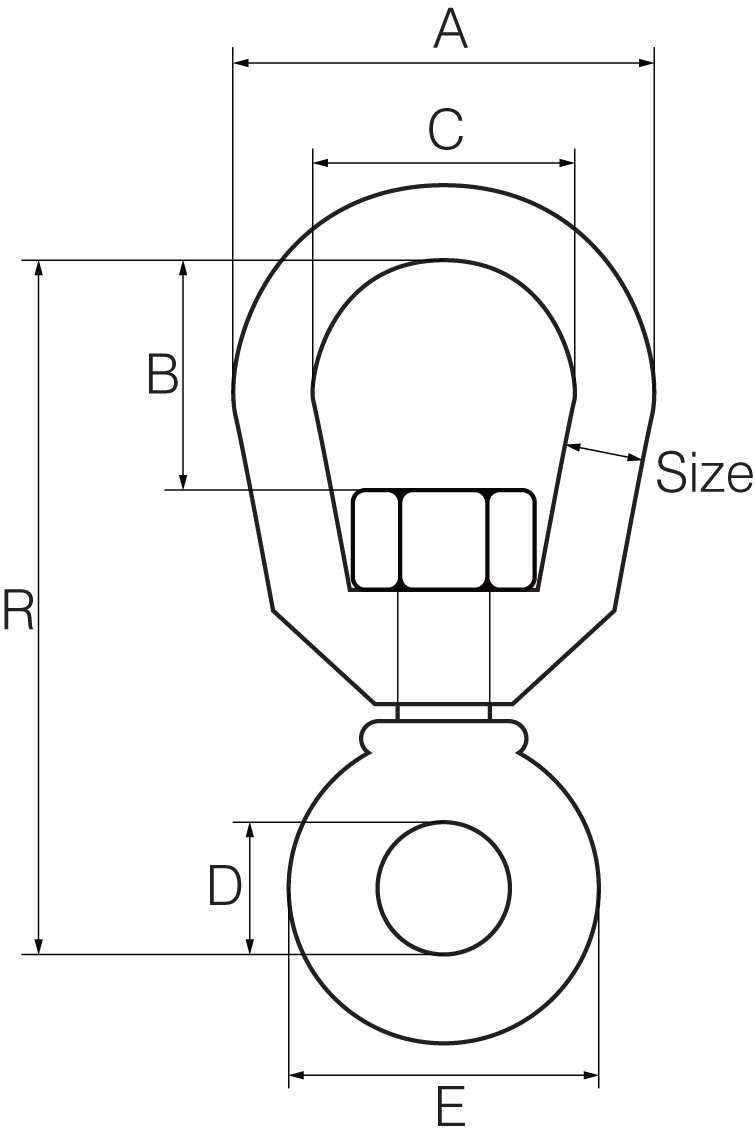

Chain Swivels Galvanised
Click to enlarge
| Product Code | Size D (inches) | Size D (mm) | A | B | C | D | R | Breaking Load (kgs) | Weight (kg/each) |
|---|---|---|---|---|---|---|---|---|---|
| RS06 | 1/4" | 6mm | 32mm | 17mm | 19mm | 27mm | 74mm | 1600 | 0.1 |
| RS08 | 5/16" | 8mm | 41mm | 20mm | 32mm | 32mm | 90mm | 2300 | 0.2 |
| RS10 | 3/8" | 10mm | 51mm | 24mm | 38mm | 38mm | 109mm | 4800 | 0.3 |
| RS12 | 1/2" | 12mm | 63mm | 33mm | 51mm | 51mm | 138mm | 6500 | 0.7 |
| RS16 | 5/8" | 16mm | 76mm | 40mm | 60mm | 60mm | 167mm | 9800 | 1.1 |
| RS20 | 3/4" | 20mm | 89mm | 44mm | 67mm | 67mm | 183mm | 14000 | 1.9 |

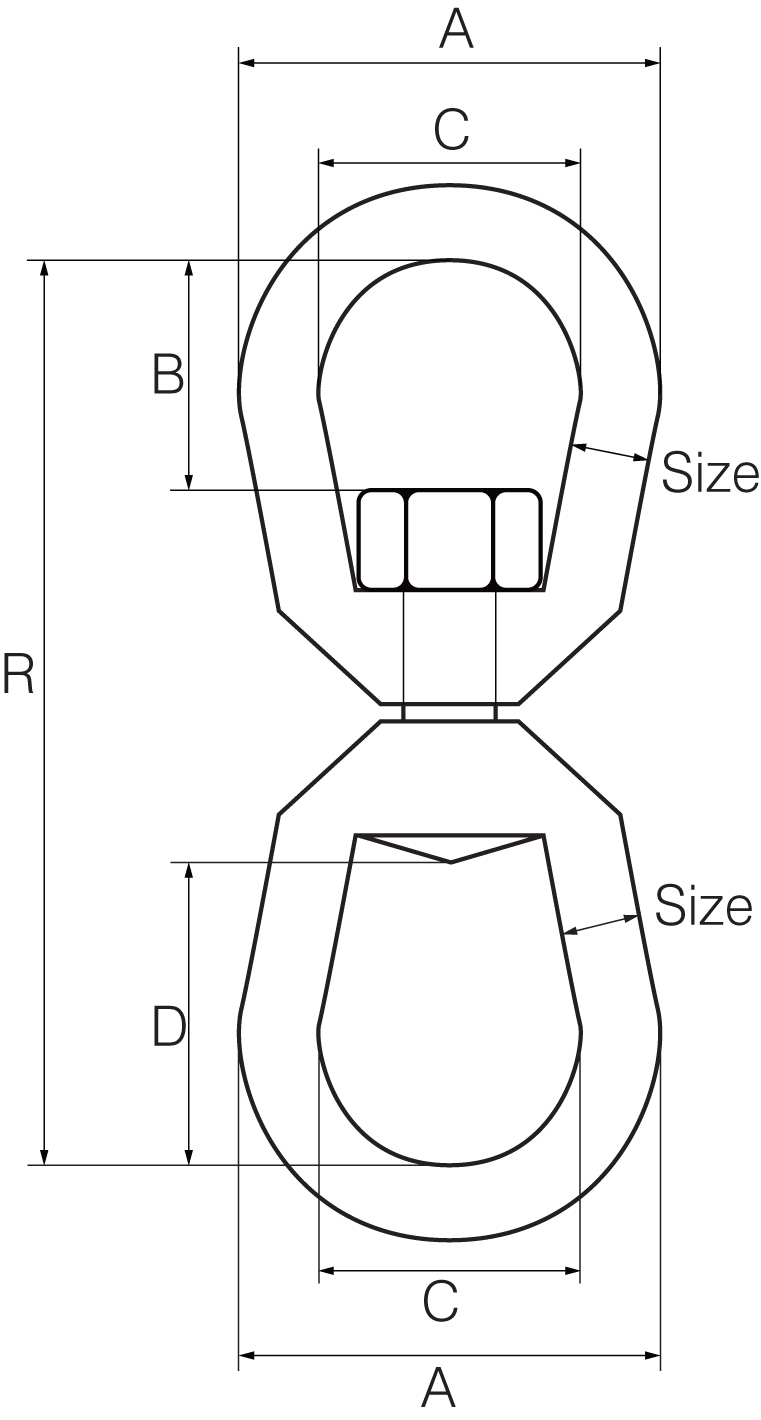

Regular Swivels Galvanised
Click to enlarge
| Product Code | Size D (inches) | Size D (mm) | A | B | C | D | R | Breaking Load (kgs) | Weight (kg/each) |
|---|---|---|---|---|---|---|---|---|---|
| RS06 | 1/4" | 6mm | 32mm | 17mm | 19mm | 27mm | 74mm | 1600 | 0.1 |
| RS08 | 5/16" | 8mm | 41mm | 20mm | 25mm | 32mm | 90mm | 2300 | 0.2 |
| RS10 | 3/8" | 10mm | 51mm | 24mm | 32mm | 38mm | 109mm | 4800 | 0.3 |
| RS12 | 1/2" | 12mm | 63mm | 33mm | 38mm | 51mm | 138mm | 6500 | 0.7 |
| RS16 | 5/8" | 16mm | 76mm | 40mm | 44mm | 60mm | 167mm | 9800 | 1.1 |
| RS20 | 3/4" | 20mm | 89mm | 44mm | 51mm | 67mm | 183mm | 14000 | 1.9 |
| RS22 | 7/8" | 22mm | 102mm | 52mm | 57mm | 77mm | 213mm | 19000 | 2.8 |
| RS25 | 1" | 28mm | 114mm | 58mm | 63mm | 89mm | 245mm | 24000 | 4.1 |

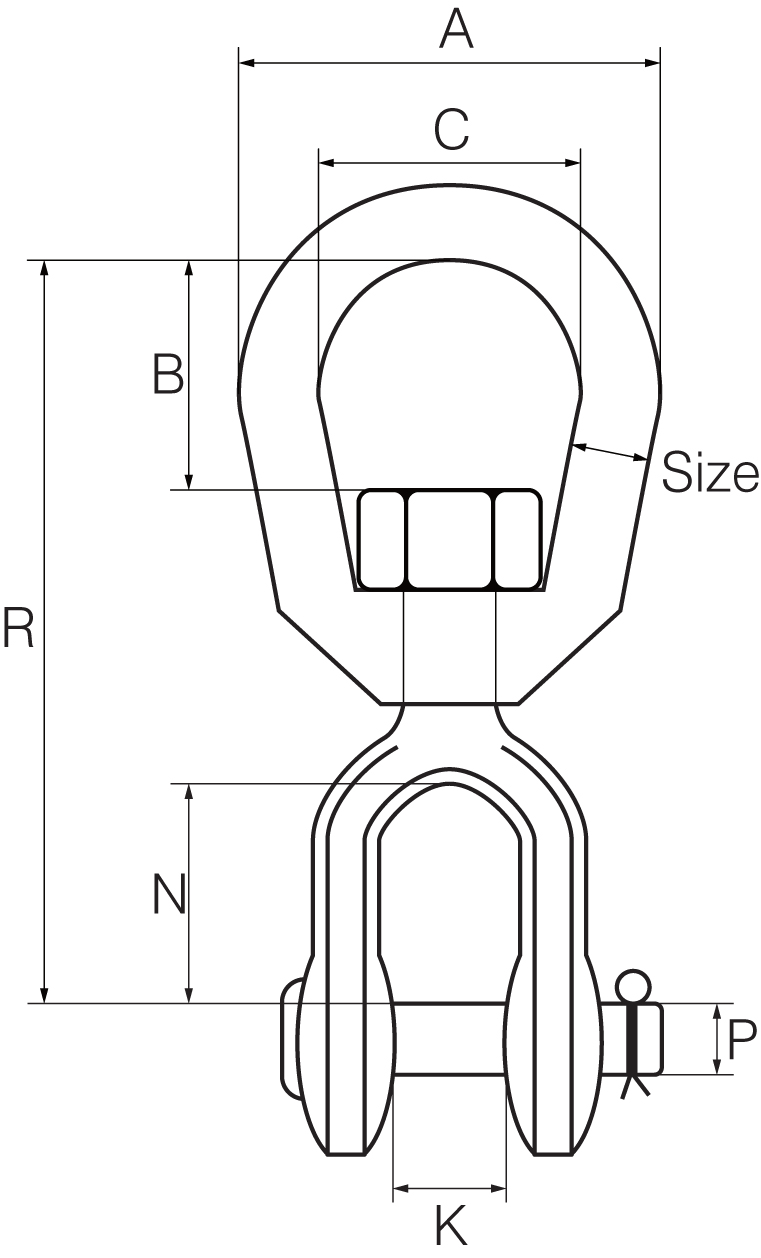

Swivels Eye & Jaw Galvanised
Click to enlarge
| Product Code | Size D (inches) | Size D (mm) | A | B | C | K | N | P | R | R Breaking Load (kgs) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GSEJ06 | 1/4" | 6mm | 32mm | 17mm | 19mm | 12mm | 22mm | 6mm | 67mm | 1600 | 0.11 |
| GSEJ08 | 5/16" | 8mm | 41mm | 21mm | 25mm | 12mm | 22mm | 8mm | 74mm | 2300 | 0.17 |
| GSEJ10 | 3/8" | 10mm | 51mm | 24mm | 32mm | 16mm | 27mm | 9mm | 92mm | 4800 | 0.32 |
| GSEJ12 | 1/2" | 12mm | 63mm | 33mm | 38mm | 19mm | 33mm | 12mm | 114mm | 6500 | 0.65 |
| GSEJ16 | 5/8" | 16mm | 76mm | 40mm | 44mm | 24mm | 38mm | 16mm | 135mm | 9800 | 1.12 |
| GSEJ20 | 3/4" | 20mm | 89mm | 44mm | 51mm | 28mm | 44mm | 19mm | 154mm | 14000 | 1.76 |
