Hand Crimping Tools are a useful way of Splicing small diameter wire ropes
(FOR NON CRITICAL USE ONLY)
Note: Hand Crimping should be done in several bites, this ensures the Jaws are fully closed to give a safe splice and round ferrule.
It is always best to grease the die holes before crimping as this will prevent the ferrules sticking.

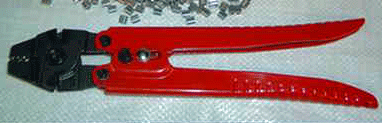

10″ Single Hand Swaging Tool with Built-in wire rope cutter
To suit sizes: 1din, 1.5din, 2din

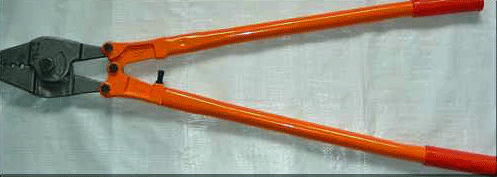

36″ Two Handed Crimping Tool No: 1
To suit sizes A1.5/2din, A2/2.5din, A3/3.5din, A4/4.5din
36″ Two Handed Crimping Tool No: 2
To suit sizes: A1.5/2din, A2.5/3din, A3.5/4din, A4.5/5din
36″ Two Handed Crimping Tool No: 3
To suit sizes: A1.5/2din, A2/2.5din, A5, A6/6.5din
Wire Rope Sizes and Din Ferrule Chart
| Din Ferrule No | Fibre Core | Wire Rope Core | Diameter when pressed (mm) | Use Die No: A | Use Die No: Din |
|---|---|---|---|---|---|
| 1 | 0.8 - 1.1 | 0.7 - 0.9 | 3 | 1 | 1 |
| 1.5 | 1.2 - 1.6 | 1.0 - 1.3 | 4 | 1.5 | 1.5/2 |
| 2 | 1.7 - 2.2 | 1.4 - 1.8 | 4 | 1.5 | 1.5/2 |
| 2.5 | 2.3 - 2.7 | 1.9 - 2.4 | 5 | 2 | 2.5 |
| 3 | 2.8 - 3.2 | 2.5 - 2.7 | 6 | 2.5 | 3 |
| 3.5 | 3.3 - 3.7 | 2.8 - 3.2 | 7 | 3 | 3.5 |
| 4 | 3.8 - 4.3 | 3.3 - 3.7 | 8 | 3.5 | 4 |
| 4.5 | 4.4 - 4.8 | 3.8 - 4.3 | 9 | 4 | 4.5 |
| 5 | 4.9 - 5.4 | 4.4 - 4.8 | 10 | 4.5 | 5 |
| 6 | 5.5 - 6.4 | 4.9 - 5.4 | 12 | No equiv | 6 |
| 6.5 | 6.5 - 6.9 | 5.5 - 6.4 | 13 | 6 | 6.5 |
Hand Operated Hydraulic Crmping Tool 3.5t
To suit sizes 1din – 5din Ferrules
